Complements Industry Standard Workflow

IPC J-STD-003 Solderability Tests for Printed Boards: Wetting Balance Companion and Non-Destructive Contact-Angle Screening

Add a non-destructive pre-solder wettability / cleanliness check; water contact angle (WCA) plus optional surface free energy (SFE) trend monitoring; to reduce solderability failures, catch handling/storage drift earlier, and shorten root-cause cycles in electronics manufacturing.

Who this is for
PCB fabrication QA teams and outgoing QC; EMS/process engineers and incoming inspection groups; reliability labs and failure-analysis teams; programs validating pad solderability on PCBs with common finishes (Cu, ENIG/ENEPIG, immersion Sn/Ag, etc.)
Positioning
Dropometer does not replace IPC J-STD-003 solderability testing. It adds a fast, localized, non-destructive WCA/SFE screening layer that helps anticipate and explain shifts in solderability outcomes; so you hold or triage earlier, and run fewer “surprise” destructive tests.
Last updated
February 18, 2026
Request Dropometer Quote View IPC J-STD-003 Official Method
Written by
abhimanyu
No biography added yet.
Read More
Written By

No biography added yet.

Evidence box

Standard intent (what the test method measures)

IPC J-STD-003 is widely used as an industry standard for solderability in circuit board fabrication and incoming inspection. In practical terms, it helps teams assess and verify whether printed board features intended for soldering still show acceptable wettability after fabrication, storage, and handling. Handling residues and environmental exposure can affect solderability, even when the surface finish is nominal. The standard’s scope covers test articles such as printed board surface conductors, attachment lands, and plated-through holes.

Dropometer role in workflow

Providing non-destructive, localized upstream surface-readiness signals (WCA + optional comparative SFE trends) that help you pre-screen and triage before you commit to destructive solderability testing or build hardware. It does not generate molten-solder wetting force data.

Primary outputs

  • Water contact angle (WCA): 10°–175° range; 0.01° resolution; 0.35° accuracy

  • Variability / uniformity: IQR (spot-to-spot spread) and zone dependence from mapped pad spots

  • SFE model support (trend / comparative mode, optional): equation-of-state, Fowkes, Oss & Good

  • Measurement modes: sessile static plus optional advancing/receding (as supported by your configuration)

  • Pad-scale dosing capability: small-droplet dosing down to ~0.05 µL for pad-scale work

Calibration requirement

Thresholds must be calibrated per finish family (e.g., Cu OSP vs ENIG vs immersion Ag) by correlating Dropometer outputs to your chosen J-STD-003 method outcomes and/or downstream defect/acceptance criteria (10–20 representative coupons spanning fresh, stored, intentionally handled/contaminated, and cleaned conditions). Re-correlate when finish chemistry changes, packaging changes, storage conditions change, or a new cleaning/handling SOP is introduced.

Protocol defaults (starting point)

  • Geometry: sessile drop (static)

  • Liquid: DI water (baseline)

  • Timepoint: WCA captured at 2.0 s (±0.2 s) after dosing

  • Spot plan: ≥5 mapped pad spots (include edges and connector regions)

  • Reporting: median + IQR; save droplet images; print a pad map overlay with WCA@2s values and disposition

Known limitations

  • Temperature ceiling: instrument operating environment typically 10°–45°C; it cannot optically measure molten-solder contact angles at soldering temperatures. Treat any flux-spread tests as room-temperature screening only.

  • Not a wetting balance: no molten solder immersion, no force–time wetting curve outputs.

  • Lower-angle floor: for very high-energy pads where water fully wets, record “≤10° (instrument floor)” rather than claiming ~0°.

  • Process specificity: J-STD-003 is not intended to evaluate your ability to run successful assembly processes or to judge design effects on wettability. Your WCA/SFE gates must be correlated to your own process window and acceptance criteria.

Controls & Data Quality

  • Measure a known-good “golden” coupon (same finish) each run/shift.

  • Retain one intentionally aged/handled coupon as a drift sentinel.

  • Reject and re-run a spot if: droplet is not fully on the target pad (edge runoff/bridging), fit/edge QC fails or baseline is unstable, or visible residue/particulate is present at the site.

How this page was created

Editorial and technical transparency notes for this page.

Transparency Details 3 checklist items
01

Drafting assistance

An initial draft was created with AI assistance (ChatGPT 5.2 Pro).

02

Verification steps

Standard identifiers, units, thresholds, and key procedural claims are checked against cited sources before publication

03

Updates

Reviewed every 12 months or when the underlying standard changes.

Executive Summary

IPC • solderability • wetting balance • contact angle

Decision question: Before we run destructive solderability testing or build assemblies; are the pads “surface-ready” to wet with solder, and if not, is handling/storage contamination a likely driver?

Answer: Use J-STD-003 as the compliance gate for wettability. Add Dropometer WCA (plus optional SFE trend) as a non-destructive pre-screen and diagnostics layer. That combination improves detection timing (earlier holds), speeds triage, and increases traceability through timestamped numeric metrics and pad maps you can attach to the lot record.

The Context

Why J-STD-003 solderability outcomes matter

In electronics manufacturing, solderability is the practical ability of a solder alloy (including lead-free alloys) to wet and bond to intended features without abnormal non-wetting or dewetting behavior. J-STD-003 is commonly referenced when you need to evaluate whether fabrication, storage, and handling have degraded the solderability of printed board surface features intended for soldering.

For many programs, wetting balance provides a sensitive “molten solder + flux + heat” measurement, while dip/float-type tests provide a go/no-go wettability result on representative coupons. The practical gap is that these solderability outcomes are typically destructive and may not localize whether a shift is due to contamination, aging, or finish drift.

Why contact angle trends are relevant (but not equivalent): The same surface-tension balance that underlies Young’s equation includes the contact angle (θ). Because contact angle responds strongly to many organic contaminants and handling residues, trending WCA (and, when needed, comparative SFE) can provide an upstream surface-readiness signal that helps explain why a solderability result shifts.

How Dropometer Fits the Workflow

Use J-STD-003 as your acceptance gate, and add Dropometer upstream as a pre-screen and diagnostics companion.

1

Pre-solder screening (incoming + pre-assembly)

  • Map WCA on pads across a coupon/panel (≥5 spots; include center, edges, and connector regions).

  • Trend the median and IQR versus a known-good control coupon.

  • Recordkeeping: save images and print a pad map overlay with WCA@2s values and the Green/Yellow/Red disposition.

2

Root-cause triage when solderability degrades (fast, practical, non-destructive)

When a J-STD-003 solderability outcome drops (or a wetting-related defect rate rises):

  • Re-measure WCA/SFE trends on (a) the failing zones and (b) the retained control coupon from a known-good lot.

  • Use variability (IQR) to distinguish global contamination/aging from localized handling residue.

  • If you suspect a finish-chemistry issue, coordinate with the manufacturer to review plating bath controls and storage/packaging conditions.

Validated measurement approach

Independent benchmarking and publication-based validation references.

Benchmark Validation

Our Contact angle and pendant‑drop surface tension methods have been benchmarked against KRÜSS DSA100E reference measurements.

See peer‑reviewed validation

Publication Evidence

Our instruments are referenced in peer‑reviewed journals, theses, and conference publications

Browse the full citations list

Calibration first (so your thresholds are defensible)

IPC J-STD-003 • solderability • pad readiness

Because wettability, contamination sensitivity, and surface treatments vary, create thresholds per material/finish family (e.g., Cu OSP vs ENIG vs immersion Ag).

Calibration / correlation plan (finish-family gates):



  • Select 10–20 representative coupons spanning fresh, stored, intentionally handled/contaminated, and cleaned conditions.

  • Measure WCA@2s (median + IQR) and, if needed, an SFE trend versus the control coupon.

  • Run your chosen J-STD-003 method on the same coupons (record flux/handling/storage conditions).

  • Establish Green/Yellow/Red gates tied to your own acceptance criteria (or correlated to downstream assembly solder-related defect rates).

  • Re-correlate when finish chemistry changes, packaging changes, storage conditions change, or a new cleaning/handling SOP is introduced.

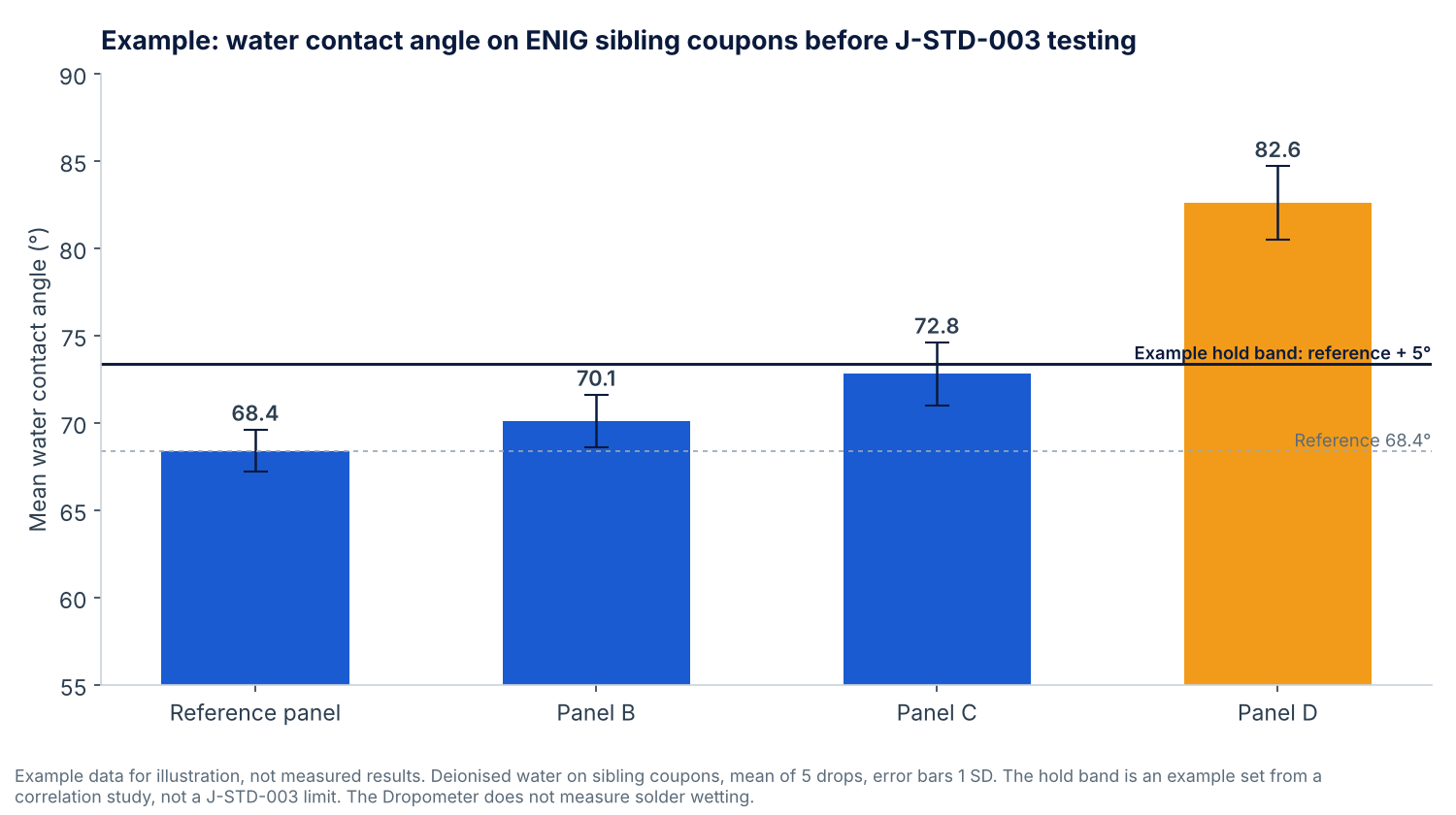

Example output

Contact-Angle–Based Solderability Risk Gating (Screening & Triage)

Gate Typical solderability risk (your program) WCA @ 2.0 s (median) IQR (uniformity) What to do
GreenLowlow / stablelowProceed; periodic J-STD-003 confirmation
YellowMediumdrifting upwardmoderateReview handling/storage; clean/verify; re-test
RedHighelevatedhighHold lot; investigate contamination source

QC-ready quick protocol (SOP card)

Goal: Repeatable, timestamped pad-level signals that correlate to your J-STD-003 outcomes and/or solder-related defect trends.

Sample handling

  • Follow your standard handling rules (gloves/wipes/packaging discipline per your QMS).

  • Ensure the measurement site is visually clean; do not measure on obvious residue/particulate.

Setup

  • Fixture the coupon/panel to prevent motion.

  • Define a pad-spot map (include edges and connector regions).

  • Always include one control coupon (known good, same finish) every run/shift.

Measurement (baseline method)

  • Geometry: sessile drop (static)

  • Liquid: DI water (baseline)

  • Capture: WCA @ 2.0 s ± 0.2 s

  • Spot plan: ≥5 mapped pad spots (fully on-pad; avoid bridging/edge runoff)

  • Reporting: median + IQR; save droplet images; include pad map overlay in the lot record

Optional: SFE trend (when you need more discrimination)



  • Use a fixed liquid set, fixed droplet volume, and fixed timestamp.

  • Interpret SFE as comparative versus a control coupon—not as an absolute material constant.

Data-quality rules (reject and re-run a spot if)



  • droplet is not fully on the target pad (edge runoff or bridging)

  • fit/edge QC fails or the contact-angle baseline is unstable

  • visible residue/particulate is present at the measurement site

Controls (shift/run)



  • Measure a known-good “golden” coupon (same finish) each run/shift.

  • Retain one intentionally aged/handled coupon as a drift sentinel.

  • Keep a controlled log you can archive with lot history.

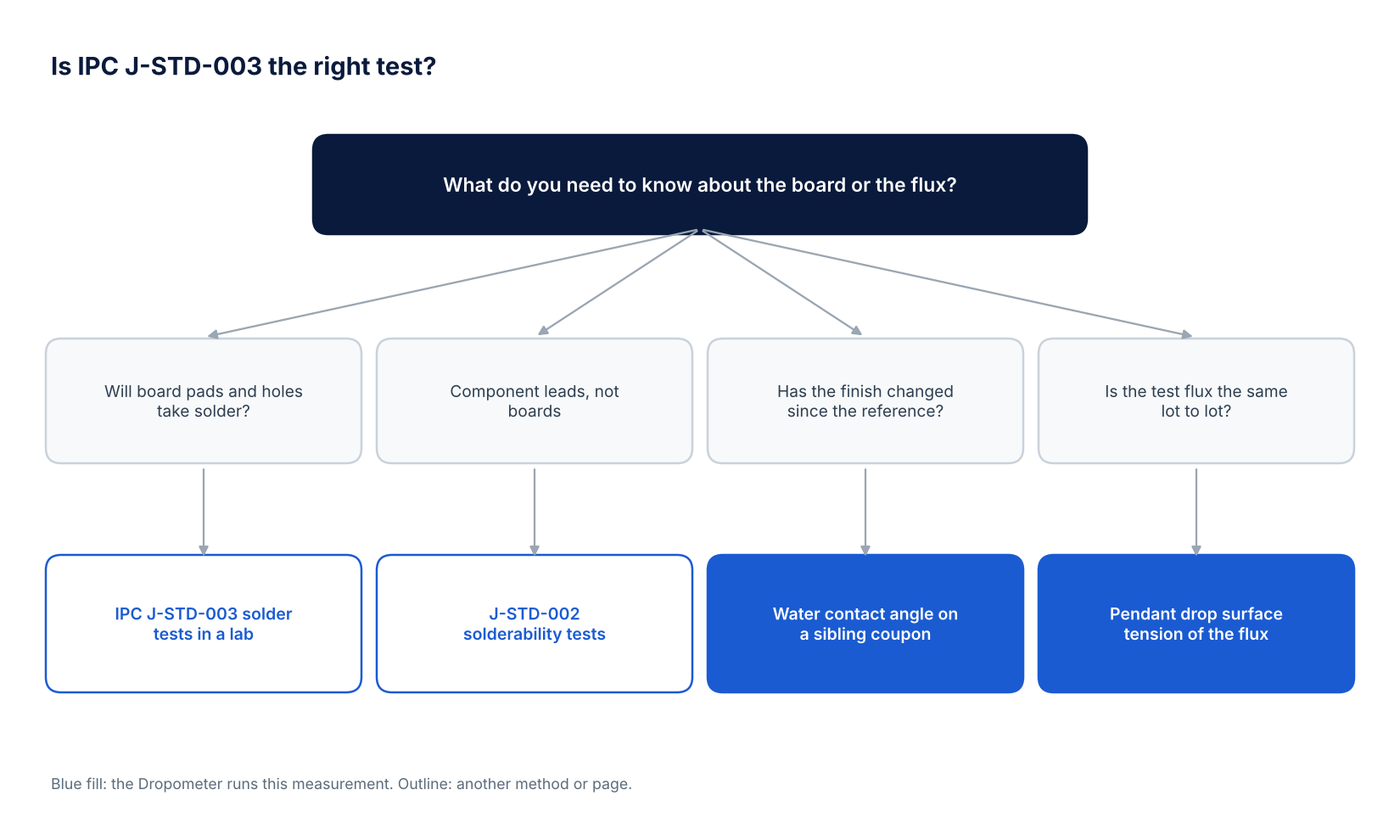

Decision tree (probabilistic) — triage + rule-out checks

Start: J-STD-003 solderability trending down OR WCA gate hits Yellow/Red.

Handling/storage contamination suspected

Signals:

  • WCA increases vs control

  • IQR increases

  • Zone dependence (edges/connectors worse)

Rule-out:

  • packaging audit

  • compare fresh vs stored coupons

  • review glove/wipe chemistry

Finish process drift suspected (global)

Signals:

WCA increases across all zones with modest IQR change

Rule-out:

  • verify finish bath controls, rinse/dry steps, thickness/chemistry records

  • confirm with your J-STD-003 gate

Measurement artifact suspected

Signals:

  • inconsistent fits

  • droplet not confined to pad

  • visible residue at measurement site

Rule-out:

  • re-clean test point (if allowed by your procedure)

  • adjust droplet volume

  • re-run

Method Settings (SOP-Ready)

Parameter Recommended Setting Technical Rationale
Geometry Sessile Drop (Static) + optional advancing/receding capability (as supported by your configuration) Static WCA provides a fast, localized surface-readiness screen; optional advancing/receding may be used when stable.
Timepoints 2.0 s (primary) Timestamping improves comparability; use fixed time after dosing.
Droplet volume Select volume that stays fully on-pad; keep fixed. Pad-scale dosing down to ~0.05 µL (as supported). Pad geometry artifacts are real; keep droplets confined and protocol-fixed.
Liquids DI water (baseline). For SFE trend, use a fixed liquid set based on the model (equation-of-state / Fowkes / Oss & Good). Water is highly sensitive to many organic contaminants; SFE trends add discrimination when controlled.
Optional SFE Comparative / trend mode vs control coupon (equation-of-state, Fowkes, Oss & Good) Use to evaluate subtle differences between similar surfaces; interpret as trend vs control.
Replicates ≥5 mapped pad spots + report median/IQR Surface condition varies by zone; spread helps distinguish global drift from localized handling.
Data quality Reject/re-run if droplet bridges/rolls off-pad; baseline unstable; fit QC fails; visible residue present Prevents pad-edge artifacts and false trends.

Interpretation

WCA at a fixed timepoint (e.g., WCA @ 2.0 s): A fast, non-destructive upstream screen for pad surface readiness; useful as a QC gate only after finish-family calibration.
Variability / uniformity (IQR + zone dependence from pad maps): Rising IQR or strong zone dependence is an early warning for contamination/aging/non-uniform handling (often worse at edges/connectors).
SFE trends (equation-of-state / Fowkes / Oss & Good), optional: When subtle differences matter, a fixed-protocol SFE trend versus a control coupon adds discrimination; treat as comparative evidence, not an absolute constant.
Room-temperature flux spread (optional screen only): Can be used as an internal screen, but do not treat it as a substitute for molten-solder solderability because heating and flux activation dominate during immersion.

Business impact — Before/After Dropometer

Metric Before Dropometer With Dropometer
Detection timing Failures first found in solderability testing/assembly Holds triggered by pre-solder readiness gates (WCA/IQR + pad map)
Root cause speed Longer cycles to isolate contamination vs finish drift Faster triage using WCA/SFE trends vs control + zone dependence
Traceability Limited “looks good / fails later” documentation Numeric WCA/IQR trends + images/pad maps in lot record
Scrap/rework More build-stage escapes and rework loops Reduced escapes by catching drift earlier

Instant ROI Snapshot

Calculate your savings in real time.

Result

≈0
hrs/month saved
≈$0
/month ROI

Where do these numbers come from? i You enter your current total time per test (dispense + record + analyze + save). The calculator assumes that our Dropometer reduces that workflow to ~1.1 minutes per test (dispense + capture + automated fit + export). Time saved per test = max(0, your time − 1.1 min). Monthly hours saved = (monthly tests × minutes saved per test) ÷ 60, and monthly savings = hours saved × labor rate.

Common Pitfalls & Limits

Do not claim J-STD-003 compliance from WCA/SFE data. Use WCA/SFE as a companion screen and correlation layer; use J-STD-003 as your acceptance gate.
Temperature matters: room-temperature contact angle is not molten-solder wetting. The instrument typically operates at 10°–45°C and does not measure molten-solder contact angles at soldering temperatures.
Pad geometry artifacts are real: keep droplets fully on the pad and use mapped replicates; reject edge runoff/bridging.
Avoid mixing standards: J-STD-003 addresses solderability of printed board features; J-STD-002 addresses solder paste requirements and is not a substitute for solderability testing.
Avoid universal cutoffs: publish only your calibrated thresholds; different finishes and cleaners shift WCA/SFE baselines.

Legal note (no certification claim)

This page describes how contact-angle and comparative SFE measurements can support J-STD-003 solderability programs as a companion tool. It does not reproduce copyrighted IPC text, does not confer third-party certification, and does not supersede the official standard. Always consult the official method controlled by your organization for the exact parameters and acceptance criteria.
