EN ISO 19403-6 Dynamic Contact Angle Test Method for Paints and Varnishes (Part 6)

Quantify advancing/receding wettability (θₐ, θᵣ, Δθ) to diagnose heterogeneity, contamination, and pretreatment drift—before adhesion or appearance failures occur

Who this is for
Coatings R&D teams, paint and varnish formulators, surface-preparation and pretreatment engineers, and QA/QC groups validating “ready-to-coat” or “ready-to-bond” condition on coated panels and substrates.
Positioning
Dropometer does not replace EN ISO 19403-6. It provides a practical implementation of the ISO measurement principle (dynamic angles by controlled drop-volume change) and adds QC-ready statistics for trending and early diagnosis.
Last updated
February 17, 2026
Request Dropometer Quote View ISO 19403-6 Official Standard
Written by
abhimanyu
No biography added yet.
Read More
Written By

No biography added yet.

Evidence box

Standard intent (what the test method measures)

EN ISO 19403-6 (Part 6) specifies a method to measure the dynamic contact angle of liquids on solid surfaces by changing the volume of a drop. The standard describes optical angle measurement where advancing and receding angles are obtained from controlled volume increase and decrease. The method is used to characterize wettability, interface behavior, and morphological/chemical homogeneity of surfaces relevant to paints and varnishes.

Dropometer role in workflow

Dropometer provides a practical implementation of the ISO principle: sessile advancing, receding, and static contact-angle modes with fine automatic dosing. This enables repeatable determination of θₐ, θᵣ, and hysteresis for QC trending. ISO specifies the method; Dropometer executes the method and adds QC-ready statistics. It does not replace the standard.

Primary outputs

● θₐ (Advancing contact angle) (median across ≥5 spots)
● θᵣ (Receding contact angle) (median across ≥5 spots)
● Δθ = θₐ − θᵣ (hysteresis; diagnostic for pinning/heterogeneity/contamination)
● Variability (IQR or SD; spot-to-spot non-uniformity)
● Optional: Static CA (a quick snapshot; keep dynamic angles as primary for Part 6 workflows)

Calibration requirement

Acceptance gates must be calibrated per material system (substrate + pretreatment + coating family + cure/conditioning) by correlating Dropometer outputs to your downstream outcomes (e.g., adhesion, appearance, rework rate) using a panel set spanning known variation. Recalibrate if the substrate/pretreatment/coating system changes, or if SOP-critical measurement settings drift (dosing program, needle, vibration control, environment).

Protocol defaults (starting point)

Sessile drop; obtain θₐ/θᵣ via controlled volume increase/decrease using automatic dosing; ≥5 spots; report median + IQR (or SD); reject and re-run any spot where edge/fit QC fails or θᵣ becomes unstable due to uncontrolled pinning. Lock the dosing rate, step size, needle geometry, and environmental conditions in the SOP.

Known limitations

Dynamic angles are sensitive to dosing rate, needle geometry, vibration, and uncontrolled contact-line pinning. High hysteresis is diagnostic, not proof of a single cause. Applicability depends on the surface condition and material system; receding angles can become noisy on strongly pinning/heterogeneous surfaces.

Controls & Data Quality

Measure a known-good reference panel/swabbed standard every batch/run. Use a defined panel map (spot locations), consistent cleaning/conditioning, and fixed dosing parameters. Reject and re-run a spot if droplet edge/fit QC fails (unstable baseline, irregular edge) or if θᵣ becomes unstable due to uncontrolled pinning.

How this page was created

Editorial and technical transparency notes for this page.

Transparency Details 3 checklist items
01

Drafting assistance

An initial draft was created with AI assistance (ChatGPT 5.2 Pro).

02

Verification steps

Standard identifiers, units, thresholds, and key procedural claims are checked against cited sources before publication

03

Updates

Reviewed every 12 months or when the underlying standard changes.

Executive Summary

EN ISO • dynamic contact angle • paints and varnishes

This page helps you answer one practical question: Is dynamic wetting/dewetting behavior stable—and if not, does the change point to chemistry/contamination or to texture-driven pinning effects?

EN ISO 19403-6 (Part 6) defines a method to measure dynamic wettability by obtaining advancing and receding contact angles through controlled volume change. Dropometer supports this workflow with optical angle measurement, fine dosing, and repeatable outputs (θₐ, θᵣ, Δθ, variability) that can be correlated to adhesion and appearance performance.

Those outputs enable immediate action: you can gate panels/lots into Green/Yellow/Red (release, re-check/clean/rework, or hold/triage), and you can use the same numbers with a reference panel to detect drift early and correct upstream instead of discovering problems after adhesion or appearance failures.

The Context

Static angles provide a general wetting snapshot, but many coating failures are governed by contact-line mobility. Dynamic contact angles describe how a liquid advances over a previously unwetted surface and how it recedes during dewetting—capturing interface processes that static measurements miss.

In practice:

  • High advancing contact angle indicates poor initial wetting.

  • Low or unstable receding angle suggests strong pinning or contamination.

  • Large hysteresis (Δθ) reflects surface heterogeneity or roughness.

EN ISO 19403-6 formalizes this measurement of dynamic wettability using an optical sessile-drop approach with controlled volume change.

How Dropometer Fits the Workflow

We recommend using EN ISO 19403-6 as your method definition, and using Dropometer to execute it with QC-ready outputs and trends.

1

Pre-screening (“ready-to-coat / ready-to-bond” check)

Immediately after pretreatment, cleaning, or cure, measure on a defined panel map:

  • θₐ (initial wetting sensitivity)

  • θᵣ (dewetting / pinning sensitivity)

  • Δθ (hysteresis diagnostic)

  • Spot-to-spot variability (non-uniformity/heterogeneity)

2

Root-cause triage (advancing vs receding behavior)

Use a “most likely cause + rule-out check” approach:

  • Contamination suspected: θₐ increases, Δθ increases, variability increases.

  • Pretreatment drift suspected: systematic θₐ/θᵣ shift vs reference with stable measurement setup.

  • Texture/pinning dominant: θᵣ collapses or becomes noisy while θₐ remains reasonable.

This supports inference about chemical homogeneity of interfaces vs morphology-driven pinning, when compared against a reference.

3

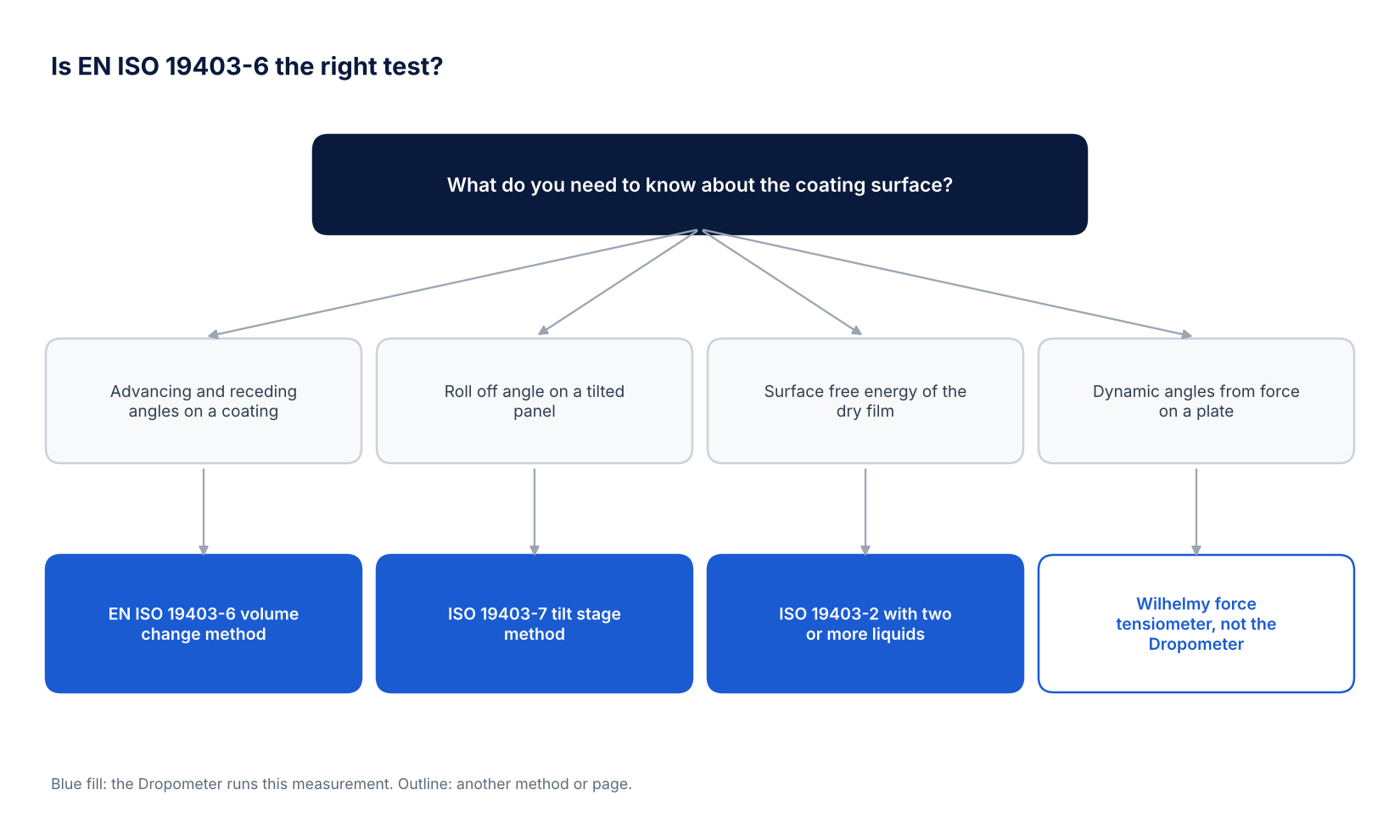

Correlation to downstream performance and other ISO parts

ISO 19403 includes different types of methods:

  • Part 1 and Part 2: surface energy concepts and determination of surface energy

  • Part 6: dynamic contact angles by volume change

Dynamic angles complement surface-energy analysis but use different QC criteria. Build internal thresholds by correlating θₐ/θᵣ/Δθ/variability to adhesion, appearance, and rework outcomes for your specific coating/substrate/pretreatment system.

Validated measurement approach

Independent benchmarking and publication-based validation references.

Benchmark Validation

Our Contact angle and pendant‑drop surface tension methods have been benchmarked against KRÜSS DSA100E reference measurements.

See peer‑reviewed validation

Publication Evidence

Our instruments are referenced in peer‑reviewed journals, theses, and conference publications

Browse the full citations list

Calibration first (so your thresholds are defensible)

EN ISO 19403-6 defines the method; the acceptance criteria needed for different materials must be built internally.

Build your correlation in one shift

Select panels spanning known variation (pretreatment shift, contamination, cure differences). Measure θₐ, θᵣ, and Δθ, then correlate to adhesion, appearance, or rework outcomes.

Measure on each panel (and the reference panel each run):
• θₐ
• θᵣ
• Δθ = θₐ − θᵣ
• Spot-to-spot spread (IQR or SD)
• Optional: Static CA (only if it adds value for your workflow)

Run your downstream confirmation checks (as applicable): adhesion test, appearance inspection, or your internal release criteria.

Output: a simple Green / Yellow / Red rule set for that material system.

Re-calibrate when: substrate changes, pretreatment recipe changes, coating family changes, cure/conditioning changes, or SOP-critical measurement parameters change (dosing program, needle geometry, environment/vibration control).

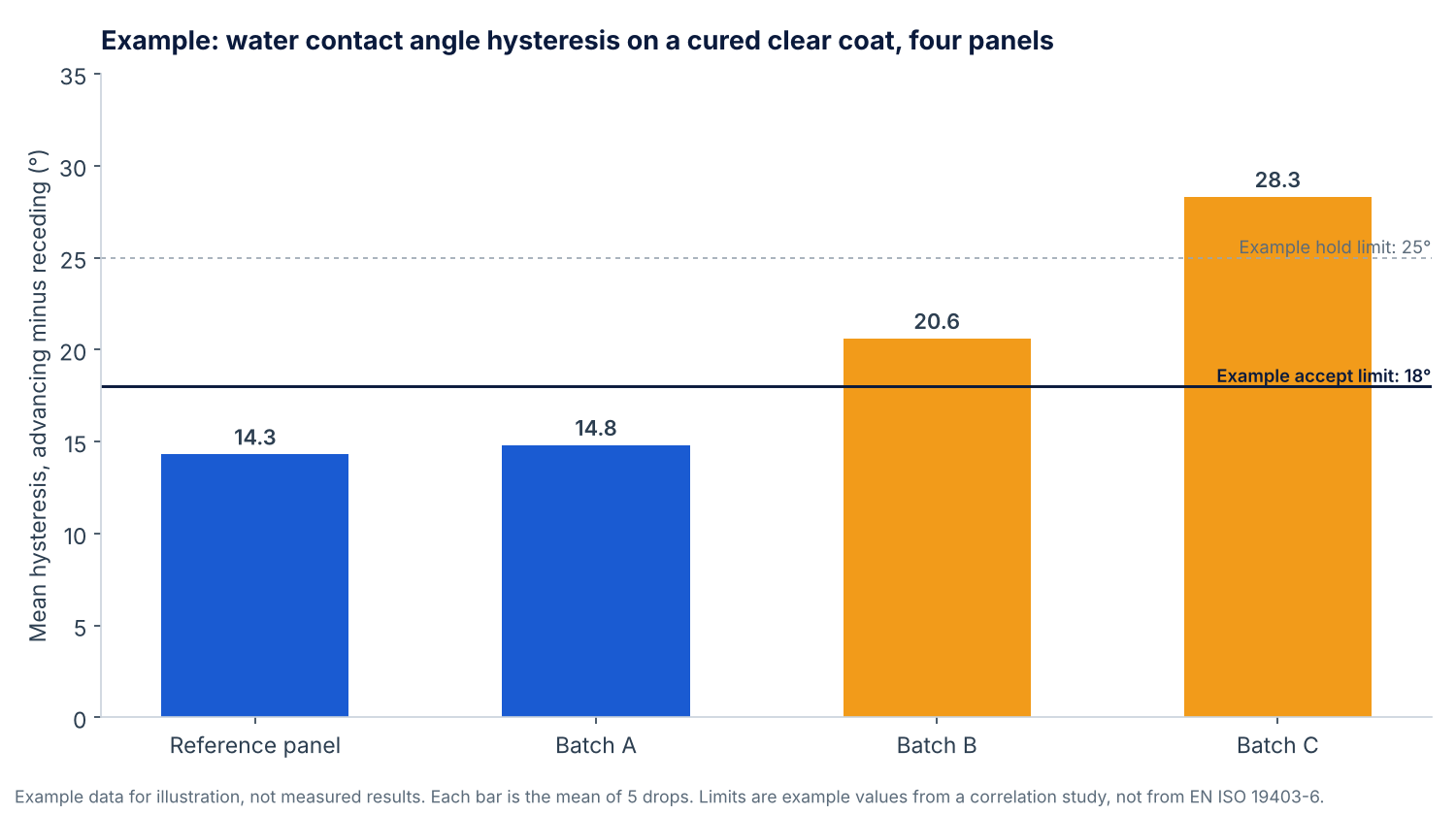

Example output (illustrative template you will replace with your data)

Clearcoat on e-coated metal + Pretreatment P (Family A)

Gate Typical downstream outcome θₐ (median) θᵣ (median) Δθ = θₐ−θᵣ Variability (IQR) What
GreenStable wetting + low defect risk≥ X°≥ Y°≤ Z°lowProceed
YellowElevated risknear band edgenear band edgemoderatemoderateVerify cleaning/pretreatment; re-test
RedLikely dewetting/pinning issueslowlow/unstablehighhighHold lot; triage root cause

QC-ready quick protocol (SOP card)

Goal: repeatable dynamic-angle numbers that trend with adhesion/appearance outcomes.

Sample handling

• Condition panels to your lab standard (define RH/temp).
• Use consistent panel size, orientation, and a defined spot map.
• Apply consistent cleaning/handling rules (gloves, storage time, etc.).

Setup

• Verify optical calibration and edge/fit QC criteria.
• Lock dosing parameters (needle geometry, dosing step/rate, dwell times).
• Always include one reference panel (known good) every batch/run.

Measurement (baseline method)

• Geometry: sessile drop.
• Procedure: obtain θₐ and θᵣ by controlled volume increase/decrease.
• Replicates: ≥5 spots per panel (or per defined panel region); report median + IQR/SD.
• QC gate: reject and re-run any spot where fit fails or θᵣ becomes unstable due to uncontrolled pinning.

• Results depend on dosing rate/needle/vibration—treat these as locked SOP parameters.
• Dynamic angles are most actionable when trended vs a reference panel and correlated to your downstream performance checks.

Decision tree (probabilistic) — triage + rule-out checks

Start: θₐ/θᵣ/Δθ trending out of band OR pre-screen hits Yellow/Red OR adhesion/appearance outcomes start drifting.

Contamination suspected

Signals:

θₐ increases, Δθ increases, variability increases (especially if shifts are patchy across the map).

Rule-out:

Verify cleaning/handling; repeat after controlled cleaning; compare to reference panel and retained “golden” panel.

Pretreatment drift suspected

Signals:

Systematic θₐ/θᵣ shift vs reference panel under the same measurement SOP.

Rule-out:

Check pretreatment bath parameters, dwell times, rinse quality; compare to a retained “golden” panel processed under known-good conditions.

Texture / pinning dominant (morphology-driven)

Signals:

θᵣ collapses or becomes noisy while θₐ remains reasonable; Δθ increases; strong spot sensitivity.

Rule-out:

Check surface roughness/morphology, coating uniformity, and panel-to-panel variability; confirm whether the behavior is intrinsic to the surface texture/structure.

Measurement setup drift (SOP drift)

Signals:

Reference panel shifts the same direction as production panels; increased fit failures; unusual noise.

Rule-out:

Confirm dosing program, needle condition/geometry, vibration isolation, camera/lighting stability, and environmental conditions.

Method Settings (SOP-Ready)

Parameter Recommended Setting Technical Rationale
Geometry Sessile drop (dynamic by volume change) ISO Part 6 principle: advancing/receding via controlled volume increase/decrease.
Procedure Measure θₐ during controlled volume increase; measure θᵣ during controlled volume decrease Dynamic angles capture contact-line mobility not visible in static CA alone.
Dosing program Automatic dosing with defined step size/rate + defined dwell times Dynamic angles are sensitive to dosing history; locking parameters improves comparability.
Needle / hardware Fixed needle geometry and consistent alignment Needle geometry can affect drop shape, stability, and the apparent dynamic response.
Environment Defined RH/temp + vibration control Dynamic measurements are sensitive to vibration and evaporation/conditioning.
Liquids Use the liquid(s) defined by your system/QMS; keep the set consistent Trends only remain meaningful when liquids are consistent across runs and correlating to your outcomes.
Replicates ≥5 spots (panel map) + median/IQR (or SD) Spot-to-spot variability is often the fastest indicator of non-uniform surface condition.

Interpretation

Advancing angle (θₐ): Sensitivity to initial wetting. A rising θₐ trend can indicate poorer wetting, contamination, or a surface-condition change—interpret as a trend vs a reference.
Receding angle (θᵣ): Obtained during volume decrease and reflects dewetting resistance/contact-line pinning. Low or unstable θᵣ can signal pinning, heterogeneity, or contamination.
Hysteresis (Δθ = θₐ − θᵣ): Diagnostic of pinning/heterogeneity/roughness/contamination. Useful for triage; not single-cause proof.
Variability (IQR/SD across map): Often the fastest indicator of non-uniform surface condition (patchy contamination, uneven pretreatment, inconsistent cure/handling).

Business impact — Before/After Dropometer

Metric Before Dropometer With Dropometer
Lab Cycles Adhesion/appearance failures discovered late Earlier “ready-to-coat” screening; fewer downstream tests wasted on out-of-control panels.
Root Cause Contamination vs pretreatment vs texture unclear θₐ/θᵣ/Δθ + variability support faster triage and targeted rule-outs.
Rework / Scrap Rework triggered after failure Drift detection during the run using a reference panel + numeric gates.
Supplier / Line Disputes Qualitative “looks fine” vs “fails later” Repeatable, timestamped QC metrics improve traceability and escalation clarity.

Instant ROI Snapshot

Calculate your savings in real time.

Result

≈0
hrs/month saved
≈$0
/month ROI

Where do these numbers come from? i You enter your current total time per test (dispense + record + analyze + save). The calculator assumes that our Dropometer reduces that workflow to ~1.1 minutes per test (dispense + capture + automated fit + export). Time saved per test = max(0, your time − 1.1 min). Monthly hours saved = (monthly tests × minutes saved per test) ÷ 60, and monthly savings = hours saved × labor rate.

Common Pitfalls & Limits

Results depend on dosing rate, needle geometry, and vibration—lock these in SOP and treat them as critical-to-quality settings.
High hysteresis is diagnostic, not proof of a single cause (pinning/roughness/heterogeneity/contamination can all contribute).
Applicability depends on surface condition and material system; θᵣ can become unstable on strongly pinning surfaces; use variability and reference-panel comparisons to avoid over-interpreting noisy values.

Legal note (no certification claim)

This page summarizes how Dropometer supports an EN ISO 19403-6 (Part 6)-aligned workflow. It does not reproduce ISO text or confer certification. Always consult the official ISO document referenced by your quality system.
