Anti-Fog and Anti-Condensation Coating Validation

Verify an anti-fog coating actually suppresses droplet-forming condensation, not just that it looks clear on day one, by measuring the near-zero contact angle its performance actually depends on.

Who this is for: Coating R&D chemists formulating anti-fog treatments for eyewear, goggles, face shields, and medical optics; automotive, aviation, and architectural glazing manufacturers; food and medical packaging film producers; QA/QC teams verifying anti-fog coating performance before shipment.

Positioning: Dropometer does not replace accredited fog-chamber or humidity-chamber testing (for example, ASTM E2189-style fog resistance testing) or long-term field durability testing. It adds a fast, quantitative contact angle screen for the near-zero wetting behavior anti-fog performance actually depends on, catching a coating that won't suppress fogging before it ships.

Last updated

July 13, 2026

Request Dropometer Quote Book a 15 minute Consult

Written by

Gurdeep Singh Saini

Holds a BASc in Mechanical Engineering (Ryerson) and an MASc from York University. He focuses on the custom AI behind the instrument.

COO at Droplet Lab

The Cost Of Getting It Wrong

15–20%

of annual revenue consumed by Cost of Poor Quality in typical manufacturing operations

American Society for Quality

10×

higher hidden cost vs. visible scrap cost: rework, re-inspection, downtime, and warranty claims are rarely captured

Lean Six Sigma research consensus

$1 → $10

upstream prevention typically saves $10 in internal rework and up to $100 in external warranty and recall costs, for the specific failure modes an upstream screen actually catches

COPQ prevention-to-failure ratio

Sources: ASQ, Learn Lean Sigma, Fabrico COPQ Guide 2026. Figures are industry-wide benchmarks, not Droplet Lab claims. Anti-fog performance depends on the opposite contact-angle behavior from most hydrophobic coatings: a lower, near-zero angle indicates better performance, not a higher one. This screen verifies that wetting behavior directly, catching a coating that won't suppress fogging before it ships.

QC-Ready Summary

What this workflow does and what it does not

Quick technical reference for coating R&D and QA teams evaluating fit before reading further.

Evidence Box (QC-Ready)

Problem this solves

An anti-fog coating can look clear and defect-free at inspection while failing to suppress condensation fogging in actual use, because anti-fog performance depends on a near-zero contact angle that a routine visual check can't detect.

Dropometer role in workflow

A quantitative pre-shipment and R&D screening tool measuring the near-zero wetting behavior anti-fog performance depends on. Not a replacement for accredited fog-chamber or humidity-chamber testing, or optical haze and clarity testing.

Primary outputs

Static water contact angle, with lower values indicating stronger anti-fog performance
Contact angle across a defined wear or cleaning-cycle interval, as a durability proxy
Spot variability and zone mapping across the coated surface
Surface energy trend across batches or candidate formulations

Calibration requirement

Correlate PASS/MONITOR/FAIL thresholds against your own fog-chamber or humidity-chamber test results, not a generic published contact-angle number, since the acceptable threshold varies by application and required fog-free duration.

Protocol defaults

DI water as the probe liquid
Fixed droplet volume and timepoint
Minimum 5 replicates per zone
Record time since coating application or last cleaning alongside every reading

Key limitation

Verifies wetting behavior, not actual fog resistance under real humidity and temperature swings, optical haze or clarity, or long-term wear durability directly.

Who this is for

What are you trying to solve?

The Dropometer serves four roles across an anti-fog coating validation program. Each has a different primary risk.

Coating R&D Chemist

Screening candidate anti-fog formulations for the wetting target their performance depends on, before committing to fog-chamber trials.

R&D iteration and trial cost

Production / QA Manager

Needing a numeric release gate on coated lenses, films, or glazing before shipment, rather than a visual clarity check alone.

Batch inconsistency and reject cost

Medical Device / PPE Manufacturer

Verifying anti-fog performance on reusable surgical goggles, face shields, and camera lenses, where fogging is a documented safety and usability problem, not just a cosmetic one.

Safety and usability risk

Field / Reliability Engineer

Tracking anti-fog coating degradation across cleaning and wear cycles on reusable products in the field.

Field complaint and re-treatment cost

workflow fit

Is this the right screen for your process?

This is not a universal solution. Check the conditions below before investing further time.

Good fit if

You need to confirm a candidate or production coating is actually hitting the low-contact-angle wetting target its anti-fog performance depends on, not just checking that it looks clear

You need a numeric pre-shipment release gate on coated lenses, films, or glazing rather than a visual clarity check alone

You're tracking anti-fog coating durability across cleaning or wear cycles and want objective data instead of a subjective "still seems to work" impression

You're screening candidate anti-fog formulations and want a numeric wetting comparison before a fog-chamber trial

Your QA process requires a traceable anti-fog coating qualification record

Less relevant if

Your coating targets an extremely aggressive, near-zero contact angle at or below this instrument's rated lower measurement bound, confirm your target range fits this instrument's stated capability first, see Honest Scope

You need a final, accredited fog-resistance rating for a spec sheet, fog-chamber or humidity-chamber testing remains the acceptance method

Your fogging issue is already confirmed to trace back to optical haze, clarity, or substrate adhesion rather than wetting behavior, see Honest Scope for why this instrument doesn't screen for that directly

Your coating system is already stable and well-characterized with no new formulations, batches, or durability questions to investigate

Root Cause Context

Anti-Fog Coatings Work Backwards From Almost Every Other Use-Case Else On This Site

Lower contact angle means better performance here, the opposite of most hydrophobic coating verification.

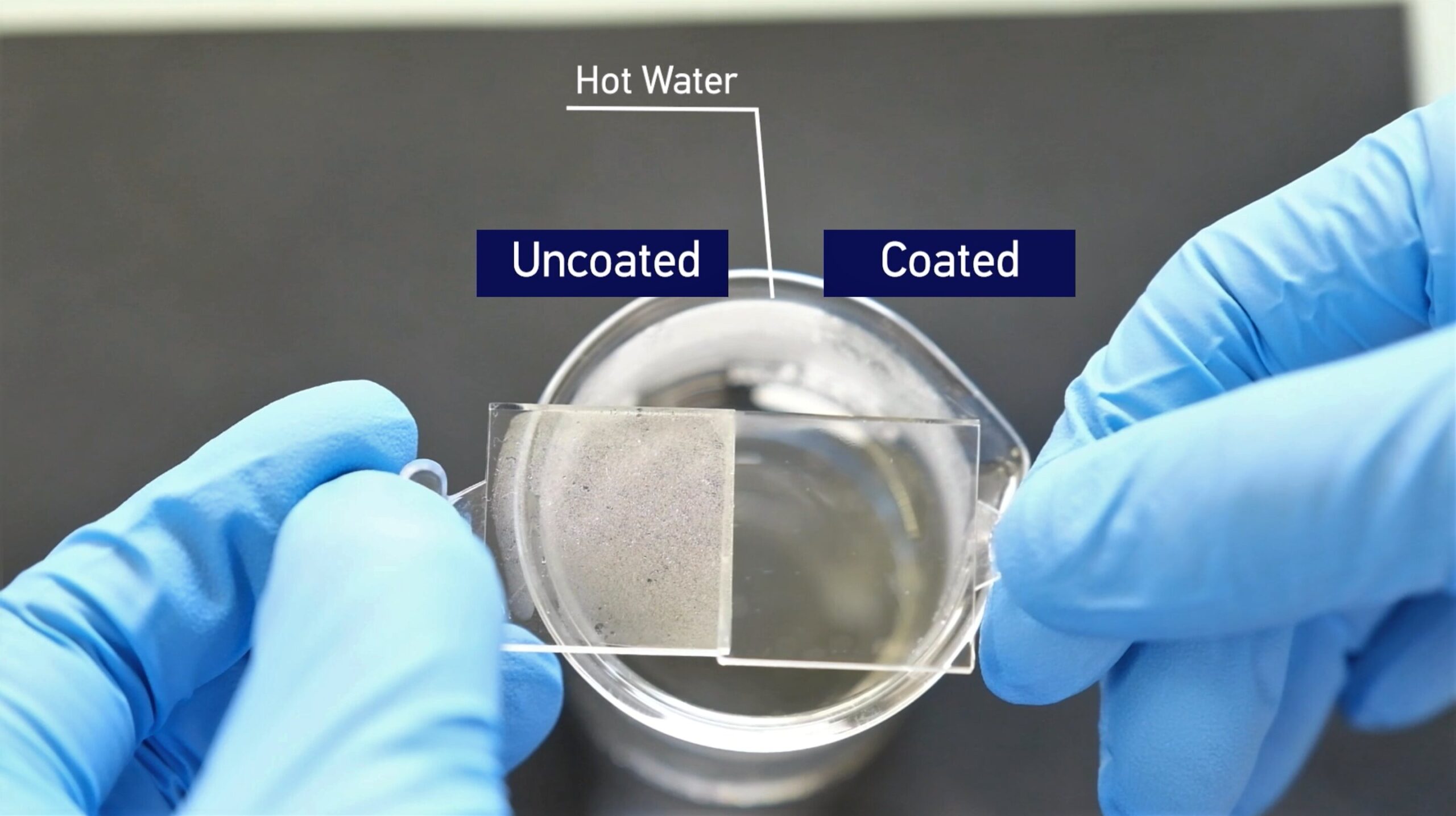

Fog forms when water vapor condenses into large numbers of discrete micro-droplets, each one small enough and curved enough to scatter light, which is what makes a foggy surface look hazy or opaque rather than clear. An anti-fog coating works by promoting a very low, near-zero contact angle, so condensing water spreads into a thin, continuous, transparent sheet instead of forming those light-scattering droplets in the first place. That's the dominant strategy in the peer-reviewed literature, and it's worth being explicit about it because it runs in the opposite direction from most of the hydrophobic and self-cleaning coatings covered elsewhere on this site: there, a rising contact angle usually signals better performance; here, it signals the coating is failing.

Durability is the other real, well-documented problem. Recent peer-reviewed work specifically targets "long-lasting and stable" anti-fog coatings because the more common failure mode isn't a coating that never worked, it's one that worked at first and lost its hydrophilic character after cleaning, handling, or extended wear. This shows up as a rising contact angle over time, exactly mirroring (in reverse direction) the hydrophobic-recovery decay problem documented on plasma-treated bonding surfaces elsewhere on this site.

This workflow measures contact angle and tracks it across a wear or cleaning-cycle interval, so a coating that's drifting away from its wetting target gets caught before it fails in the field, in a surgical suite, on a windshield, or in a packaging line. The honest limit: wetting behavior predicts fog-suppression tendency, it doesn't measure actual fog resistance under real humidity and temperature swings, optical haze, or long-term wear durability directly.

Recognition

What Does an Anti-Fog Coating Failure Actually Look Like?

A coating that was applied and passed inspection still fogs in real use, loses its anti-fog performance faster than expected after cleaning, or performs inconsistently across a batch of coated lenses, films, or glazing, without a quantitative way to catch the gap before a field complaint.

Fogging occurs in the field despite an anti-fog coating having been applied.

Anti-fog performance fades noticeably after cleaning or repeated handling.

Inconsistent anti-fog performance across lenses, films, or glazing from the same nominal coating batch.

A coating passes visual inspection but fails under real humidity or temperature-swing conditions.

Reusable safety or surgical eyewear fogs mid-use despite carrying an anti-fog treatment.

Customer complaints that an anti-fog product isn't performing as marketed.

Diagnosis

Root Causes

Why:

The coating's contact angle isn't low enough to promote a continuous water sheet, so condensation still nucleates as discrete, light-scattering droplets.

How to detect:

Contact angle above your qualified wetting threshold immediately after coating application

Corrective action:

Re-optimize the formulation or application process to hit the target wetting level

Why:

Repeated cleaning, handling, or abrasion strips the hydrophilic surface layer over time, the mirror image of the hydrophobic-recovery problem seen on other coating types.

How to detect:

Contact angle rises over a wear or cleaning-cycle interval relative to a fresh baseline

Corrective action:

Reformulate for better mechanical and chemical durability, or set a re-treatment interval based on your measured decline rate

Why:

Coating thickness or cure condition variation changes the achieved wetting level even when the underlying formulation is correct.

How to detect:

Contact-angle variability across a production batch, or across zones on a single part

Corrective action:

Recalibrate application and cure parameters against your qualified recipe

Why:

Some anti-fog coatings are qualified for a specific humidity and temperature-swing range; a faster or larger real-world condensation event can overwhelm even a properly functioning coating.

How to detect:

The coating passes at its qualified test condition but fails under faster or larger real-world humidity or temperature swings

Corrective action:

Test and qualify against your application's actual environmental profile, not just a standard lab condition

Why:

A coating with a correctly low contact angle can still produce unacceptable optical haze, discoloration, or substrate adhesion problems, none of which a wetting measurement captures.

How to detect:

Contact angle is within baseline but optical haze, clarity, or adhesion testing still shows a problem

Corrective action:

Route the investigation to optical haze and clarity measurement and adhesion or durability testing rather than continuing to iterate on wetting alone

Not sure which root cause applies to your process?

A surface science specialist can review your fogging or field-complaint history and help you identify whether a wetting screen would add a useful upstream gate.

For Compliance Officers and QA Managers

Building a defensible anti-fog coating qualification record

Surface readiness measurement produces the type of numeric, traceable output that a subjective "looks clear" impression cannot. If your quality system requires documented evidence of process control for NCR responses, CAPA files, incoming inspection records, or customer audits, contact angle data provide that evidence in a format your QA documentation already requires.

Audit trail

Numeric contact angle values with replicate spread, timestamps, and coating batch or product identification; replacing subjective "looks clear" impressions with defensible numeric logs.

CAPA evidence

When a field fogging complaint triggers a Corrective and Preventive Action file, wetting data from before and after a formulation or process change provide quantitative evidence of the mechanism involved, not anecdotal description.

NCR documentation

Non-conformance reports that include numeric wetting data allow you to assign root cause to under-treatment, durability loss, or application drift with evidence, not inference.

Supplier qualification

Incoming coated lens, film, or glazing lot inspection using contact angle provides a numeric acceptance criterion for supplier qualification, independent of the supplier's own marketing claims.

Process control records

Contact angle trend logs by coating batch demonstrate statistical process control at the pre-shipment step; relevant to Six Sigma, SPC, and DMAIC programs targeting fogging-related field complaints.

Anti-fog qualification record

A pre-shipment or scheduled durability check gives QA a numeric basis for release or re-treatment, instead of finding out about a failed coating only after a field complaint.

What to Measure

Primary screen

Static water contact angle

Why it matters: The primary indicator of the sheeting wetting behavior anti-fog performance depends on.

How to interpret: Lower angle indicates stronger anti-fog performance, the opposite direction from most hydrophobic-coating pages, correlate against your own fog-chamber threshold.

When it is not enough: Doesn't directly measure optical haze, clarity, or fog resistance under real humidity and temperature swings.

Primary screen

Contact angle after a defined wear or cleaning-cycle interval

Why it matters: Anti-fog coatings commonly lose hydrophilic character with cleaning and handling over time.

How to interpret: Track the rise in contact angle against your own durability requirement, not a single-point pass/fail.

When it is not enough: Lab-scale cycling is a proxy for real use conditions, not a substitute for them.

QC

Spot variability (zone mapping)

Why it matters: Detects uneven coating application across a lens, film, or glazing surface that a single-point reading would miss.

How to interpret: High variability flags an application-process issue worth investigating.

When it is not enough: Flags where a problem exists without confirming which specific cause is responsible.

Supplementary

Surface energy trend

Why it matters: Quantifies overall coating condition on a scale comparable across batches or candidate formulations.

How to interpret: Compare against your own qualified baseline rather than a generic published number.

When it is not enough: A performance metric only; doesn't directly measure fog resistance itself.

Validated Measurement Approach

Independent benchmarking and publication-based validation references.

Benchmark Validation

Our contact-angle and pendant-drop methods are benchmarked against KRUSS DSA100E reference measurements.

See peer-reviewed validation

Publication Evidence

Our instruments are referenced in peer-reviewed journals, theses, and conference publications.

Browse citations

QC Protocol

How Dropometer Fits Your Workflow

Dropometer is best used to confirm your target wetting range fits this instrument's measurement capability, then build a baseline to gate pre-shipment release and durability tracking against.

1

Confirm your target wetting range

Identify the contact angle your anti-fog performance actually requires, and confirm it fits within this instrument's rated 10 to 175 degree measurement range: Some high-performance formulations target below 10 degrees, verify this before relying on this instrument alone for those cases

2

Establish a baseline

Measure contact angle on a freshly applied, known-good coating: This baseline is what every future batch or durability reading gets compared against

3

Track durability

Measure contact angle across a defined wear or cleaning-cycle series: This is where most anti-fog failures actually originate, catch it here, not in the field

4

Set a pre-shipment release gate

Verify production samples against your validated baseline before shipment: PASS: within baseline band → release MONITOR: borderline result → re-verify or hold FAIL: out of band → investigate formulation, application, or cure drift

We completed our gage R&R study on the unit and it performed very well.

Brandon Barbee

Corporate Quality Engineer - Zeus Industries - Polymer Manufacturing

Download the Anti-Fog Coating Verification SOP Template

An editable SOP template your team can adapt for your substrate, coating chemistry, and application process. Includes measurement protocol, durability-tracking guidance, gate-setting guidance, and a QC log format ready for your documentation system.

Example Outputs

Sample Coating Verification: Fresh vs. Worn Anti-Fog Performance

Representative output format. Values are illustrative, not a universal specification. Lower contact angle indicates stronger performance throughout this table.

Actual measurement output

Dropometer contact angle measurement of DI water on coated glass. This is the type of output used to decide whether a batch releases or a durability concern needs investigation.

Sample Coating Verification: Fresh vs. Worn Anti-Fog Performance

Sample	Contact Angle (°)	Cleaning Cycles	Status
Anti-fog coating, fresh application (baseline)	8°	0	PASS
Anti-fog coating, same batch	14°	25	PASS — continue tracking trend
Anti-fog coating, same batch	31°	75	MONITOR — confirm against fog-chamber data before continued use
Anti-fog coating, same batch	58°	150	FAIL — re-treat or replace

The fresh application establishes the PASS baseline at a low, strongly wetting contact angle. After 25 cleaning cycles, the angle has risen modestly, still within a reasonable PASS range. By 75 cycles, the rise is substantial enough to warrant a MONITOR decision, worth confirming against actual fog-chamber performance before continued field use. By 150 cycles, the coating has largely reverted toward non-wetting behavior, a FAIL decision. Note the direction throughout this table: rising numbers indicate declining performance, the reverse of most other coating pages in this library. This output would be included in the anti-fog qualification record used to decide whether re-treatment is needed.

Troubleshooting

Anti-fog coating troubleshooting guide

Start condition: fogging is occurring despite a coating being applied, or performance seems to be declining. Use the signal pattern to identify the most likely cause.

Signal A

Contact angle above your qualified threshold immediately after coating

Likely cause: Insufficient hydrophilic character from an under-treated formulation.
Action: Re-optimize the formulation or application process to hit the target wetting level.

Signal B

Contact angle rises over a wear or cleaning-cycle interval

Likely cause: Coating wear and durability loss.
Action: Reformulate for better durability, or set a re-treatment interval based on your measured decline rate.

Signal C

Contact-angle variability across a batch or across zones on a single part

Likely cause: Application or cure process drift.
Action: Recalibrate application and cure parameters against your qualified recipe.

Signal D

Coating passes at qualified test conditions but fails in real-world use

Likely cause: Environmental mismatch between the coating's qualified range and actual field conditions.
Action: Test and qualify against your application's actual environmental profile.

Signal E

Contact angle is within baseline but fogging or optical complaints persist

Likely cause: Optical haze, clarity, or substrate adhesion issue, not a wetting problem.
Action: Route the investigation to haze/clarity and adhesion testing.

FAQ

Common questions before adoption

No, this is the opposite of most hydrophobic coating verification. Anti-fog performance depends on a low, near-zero contact angle that promotes a continuous water sheet instead of light-scattering droplets. A rising angle signals declining performance here.

No. It's a fast wetting screen for R&D and pre-shipment QC. Confirm final fog-resistance ratings with accredited fog-chamber or humidity-chamber testing.

Confirm your target range first. The Dropometer's rated sessile-drop range is 10 to 175 degrees; some high-performance anti-fog formulations target contact angles below that floor, verify where your coating's target actually falls before relying on this instrument alone for those cases.

Most commonly, durability loss, cleaning, handling, or abrasion strips the hydrophilic surface layer over time, which shows up as a rising contact angle well before the coating visibly fails.

Yes. Comparing contact angle across candidates at matched conditions, and tracking each across a cleaning-cycle series, is one of the more direct uses of this protocol.

It rules out wetting behavior as the cause, pointing toward optical haze, clarity, or substrate adhesion instead, none of which this instrument measures.

Yes. The Dropometer produces numeric contact angle data with replicate records, timestamps, and batch or product identification, usable in NCR responses, CAPA files, and supplier audit packages.

Business Impact

What Changes When You Verify Anti-Fog Performance Before Shipment, Not After a Field Complaint

Before and with Dropometer; operational outcomes

Metric	Before Dropometer	With Dropometer	Indicative Benchmark
Failure discovery point	A field fogging complaint, after shipment or installation	Contact angle screening before shipment and on a durability schedule	"COPQ from late-discovered defects typically 15–20% of revenue for manufacturers without upstream gates"
Durability tracking	Assumed durability with no measured decline curve	Contact angle tracked across a cleaning or wear-cycle series	"Catches a durability gap before it reaches a field failure"
Candidate formulation screening	Full fog-chamber trials across each candidate chemistry	Wetting-data comparison narrows candidates before a fog-chamber trial	"Catches a durability gap before it reaches a field failure"
Batch-to-batch consistency	Unmeasured variability across coating batches	Tracked per batch against a qualified wetting baseline	"Replicate spread detects drift before it reaches a shipped product"
Audit documentation	Subjective "looks clear" check; not defensible under audit	Numeric wetting logs with timestamps and batch/product ID	"Applicable to NCR, CAPA, incoming inspection, and supplier qualification records"

Instant ROI Snapshot

Instrument cost ($) Each Dropometer unit is $5,000 — default models 1 unit.

Rework events / month

Avg rework cost per event ($) Share of recoat or reject cost attributable to anti-fog coating failure specifically, not blanket batch cost.

Failures preventable (%) Conservative range: 25-35%.

Scrap cost per event ($) Share attributable to this specific failure mode, not blanket scrap/cost.

Other monthly savings ($)

Result

~0

Monthly savings

~0

Payback period

~0

Year-1 net benefit

Monthly savings = preventable rework cost + preventable scrap cost + other monthly savings.

Honest scope

What Wetting Measurement Cannot Tell You About Anti-Fog Performance

Knowing the limits of any measurement tool is part of using it responsibly.

This instrument's rated sessile-drop contact angle range is 10 to 175 degrees. Some high-performance anti-fog formulations target contact angles below 10 degrees, confirm your specific target falls within this instrument's measurement capability before relying on it alone.

Lower contact angle means better performance for anti-fog coatings, the opposite of most hydrophobic coatings, apply the correct threshold direction for this application.

Wetting measurement verifies the mechanism anti-fog performance depends on, it does not measure actual fog resistance under real humidity and temperature swings.

A correctly low contact angle doesn't guarantee acceptable optical haze, clarity, or substrate adhesion; those need their own dedicated testing.

Durability must be measured directly across a wear or cleaning-cycle series, don't assume a fresh coating's contact angle predicts its performance after repeated use.

Use wetting metrics as an upstream quality gate, then confirm final suitability with accredited fog-chamber or humidity-chamber acceptance testing.

Use this page to improve candidate screening and durability tracking, not to replace accredited fog-resistance testing. The Dropometer is one layer in a quality system, not a substitute for one.

Request Dropometer Quote Book a 15 minute Consult

How this page was created

Editorial and technical transparency notes for this page.

Transparency Details 4 checklist items

01

Drafting assistance

Initial draft created with AI assistance (Claude Opus 4.8), then rewritten for technical clarity.

02

Technical review

Reviewed and edited for technical accuracy by a surface-science specialist.

03

Verification steps

Identifiers, units, thresholds, and key claims checked against cited sources before publication.

04

Updates

Reviewed every 12 months or when the underlying standard changes.

Report a correction

Spotted an issue in this summary? Send a correction request and our team will review it.

Correction Request

We work hard to keep this standards summary accurate and up to date. If you spot an error (wrong revision/year, missing requirement, incorrect interpretation, or broken link), tell us and we'll review it.

Contact us to report a correction

References

Sources

1.

Long-lasting and stable anti-fog coating combined with active and passive strategy. Nature Communications (2025). https://www.nature.com/articles/s41467-025-64055-0

2.

Recent advances in superwetting anti-fog surfaces for medical goggles: a mini review. Frontiers in Bioengineering and Biotechnology (2026). https://www.frontiersin.org/journals/bioengineering-and-biotechnology/articles/10.3389/fbioe.2026.1865199/full

3.

Fundamentals of antifogging strategies, coating techniques and properties of inorganic materials; a comprehensive review. ScienceDirect. https://www.sciencedirect.com/science/article/pii/S2238785423000157

4.

ASTM E2189, Standard Test Method for Testing Resistance to Fogging in Insulating Glass Units. https://store.astm.org/e2189-19.html

5.

Chen, X. et al. Contact angle measurement with a smartphone. Review of Scientific Instruments, 89, 035117 (2018). https://pubs.aip.org/aip/rsi/article-abstract/89/3/035117/368179/Contact-angle-measurement-with-a-smartphone

6.

Fabrico. The Cost of Poor Quality (COPQ) in Manufacturing: 2026 Guide. https://www.fabrico.io/blog/cost-of-poor-quality-copq-manufacturing-guide/

Anti-Fog and Anti-Condensation Coating Validation

Gurdeep Singh Saini

Droplet Lab Team

Featured Studies & Publications

The Cost Of Getting It Wrong

15–20%

10×

$1 → $10

What this workflow does and what it does not

Evidence Box (QC-Ready)

What are you trying to solve?

Coating R&D Chemist

Production / QA Manager

Medical Device / PPE Manufacturer

Field / Reliability Engineer

Is this the right screen for your process?

Good fit if

Less relevant if

Anti-Fog Coatings Work Backwards From Almost Every Other Use-Case Else On This Site

What Does an Anti-Fog Coating Failure Actually Look Like?

Root Causes

Not sure which root cause applies to your process?

Building a defensible anti-fog coating qualification record

Audit trail

CAPA evidence

NCR documentation

Supplier qualification

Process control records

Anti-fog qualification record

What to Measure

Static water contact angle

Contact angle after a defined wear or cleaning-cycle interval

Spot variability (zone mapping)

Surface energy trend

Validated Measurement Approach

How Dropometer Fits Your Workflow

Confirm your target wetting range

Establish a baseline

Track durability

Set a pre-shipment release gate

Download the Anti-Fog Coating Verification SOP Template

Sample Coating Verification: Fresh vs. Worn Anti-Fog Performance

Sample Coating Verification: Fresh vs. Worn Anti-Fog Performance

Anti-fog coating troubleshooting guide

Contact angle above your qualified threshold immediately after coating

Contact angle rises over a wear or cleaning-cycle interval

Contact-angle variability across a batch or across zones on a single part

Coating passes at qualified test conditions but fails in real-world use

Contact angle is within baseline but fogging or optical complaints persist

Common questions before adoption

What Changes When You Verify Anti-Fog Performance Before Shipment, Not After a Field Complaint

Before and with Dropometer; operational outcomes

Instant ROI Snapshot

Estimate avoided recoat and reject cost from anti-fog coating failures.

What Wetting Measurement Cannot Tell You About Anti-Fog Performance

Similar surface readiness workflows

Self-Cleaning and Anti-Soiling Coating Validation, Including Solar PV

Plasma Treatment Verification for Reliable Adhesive Bonding

Surface Cleanliness Verification

How this page was created

Drafting assistance

Technical review

Verification steps

Updates

Report a correction

Sources
