Understanding the Leidenfrost Effect: From a Stainless Steel Pan to Heat Transfer Systems
The Leidenfrost effect happens when a liquid touches a surface far hotter than its boiling point. The underside of the drop vaporises and a thin vapor film lifts it, so the drop skates across the surface and evaporates slowly. For water on smooth metal it often starts near 200°C, but the exact point depends on the surface and the liquid.
Droplet Lab Team
Droplet Lab builds precision instruments and software for surface science measurement, specialising in contact angle analysis and surface tension characterisation. Used by researchers across materials science, pharmaceuticals, coatings, and advanced manufacturing, Droplet Lab's Dropometer has contributed to studies published in peer-reviewed journals including Advanced Functional Materials (Impact Factor 19). The team combines instrument engineering with deep domain knowledge in wettability science with a focus on practical accuracy.
What is the Leidenfrost effect?
Short answer: when a liquid lands on a surface far hotter than its boiling point, the bottom of the drop turns to vapor so fast that a thin vapor film forms underneath. The film holds the drop off the surface, so it skates around and evaporates slowly instead of boiling away.
You can see it on a hot stainless steel pan. Sprinkle water on a warm pan and it sizzles and spreads. Sprinkle it on a much hotter pan and it beads up and glides like a puck on an air hockey table. Johann Gottlob Leidenfrost described this in 1756, and an English translation of his work was published in 1966 (Leidenfrost, 1966).
How does the Leidenfrost effect show up in a stainless steel pan?
Many cooks use the Leidenfrost effect as a quick heat check. Heat a dry stainless steel pan, then flick in a drop of water and watch what it does.
- Pan below the boiling point of water. The drop sits and slowly evaporates.
- Hot, but below the Leidenfrost point. The drop sizzles, spreads and boils away in a few seconds.

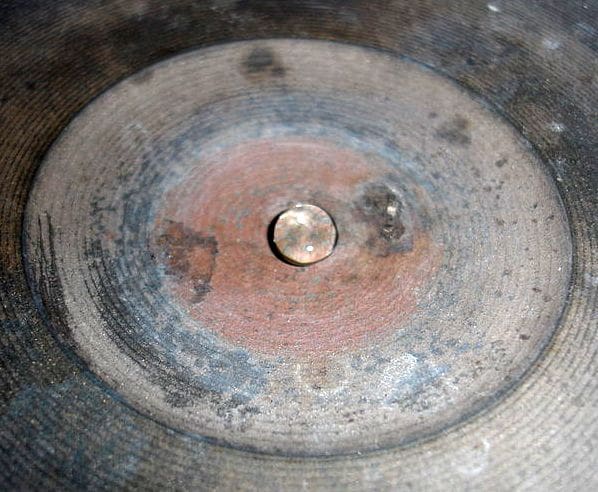

- At or above the Leidenfrost point. The drop pulls into a ball and glides across the steel pan on its vapor layer, sometimes splitting into smaller balls.
Many cooks read that last stage as the sign that the pan is ready for oil. The water test works in carbon steel and cast iron pans too, though seasoning and surface texture change the temperature at which drops start to skate. Wipe out the water before adding oil, and never pour water into a hot frying pan that already holds oil.
How does a vapor layer lift a Leidenfrost droplet?
On contact, the underside of the drop flashes into vapor. The vapor cannot escape quickly through the narrow gap, so it builds a continuous cushion under the drop. For millimetre sized water drops this film is roughly 10 to 100 micrometres thick (Biance et al., 2003).
The film does two things:
- Lift. Vapor pressure supports the drop, so it moves with almost no friction.
- Insulation. Vapor has a far lower thermal conductivity than metal or water, so much less heat reaches the liquid.
Surface tension keeps the drop compact and nearly round. Uneven vapor flow underneath pushes it sideways, and on a surface with ratchet shaped grooves Leidenfrost drops even propel themselves in one direction (Linke et al., 2006).
Why does a droplet last longer above the Leidenfrost point?
Below the Leidenfrost point, a hotter surface boils a drop away faster. Once the vapor film forms, that trend reverses: the film insulates the drop and its lifetime jumps. A water drop can survive far longer on a surface at about 230°C than on one at about 150°C. Leidenfrost reported this in his original experiments, and it has been measured many times since (Quéré, 2013).
The surface temperature where the film first becomes stable is called the Leidenfrost point. For water on smooth metal it is often quoted near 200°C, but measured values spread widely with surface and test conditions (Bernardin and Mudawar, 1999).
Heat transfer engineers map this on a boiling curve. As the surface gets hotter, boiling moves from nucleate boiling through transition boiling to stable film boiling, which begins at the Leidenfrost point. In film boiling, heat crosses the vapor layer mainly by conduction, with some radiation through the vapor at very high temperatures.
What shifts the Leidenfrost temperature?
The Leidenfrost point is not a material constant. It belongs to a specific liquid on a specific surface under specific conditions.
| Factor | What it does |
|---|---|
| Surface roughness | Texture or a porous surface can puncture the vapor film and raise the Leidenfrost point, or channel vapor and help hold the film |
| Wettability | Hydrophilic surfaces wet more easily and tend to delay a stable film; a textured superhydrophobic surface can hold the film down to much lower temperatures (Vakarelski et al., 2012) |
| The liquid | Volatile and cryogenic liquids reach the regime easily; liquid nitrogen shows it on a room temperature surface |
| Pressure | The boiling point and the Leidenfrost point both change with ambient pressure |
| How the drop arrives | Drops that hit fast or are deposited from a height need a hotter surface to stay off it (Bernardin and Mudawar, 1999) |
How does wettability connect to the Leidenfrost point?
The same surface chemistry that sets how a drop wets a surface at room temperature also affects how easily a vapor film forms when the surface is hot. A surface that water wets well pulls liquid back into contact; a water repellent one lets the film hold.
That makes a room temperature contact angle a useful first check on any surface you plan to cool with a liquid. The contact angle measurement guide explains how it is measured, the Young equation links the angle to surface energies, and the water contact angle reference values show typical numbers for common materials. The Dropometer measures it with automatic edge and baseline detection.
Expert Quote
Wettability is set by the top five to ten ångström of a surface — what the liquid actually sees. It doesn't matter what lies beneath; that outermost layer is what you are really measuring.
Where does the Leidenfrost effect matter in engineering?
- Quenching and metalworking. When hot metal is plunged into water, a vapor film can wrap the part and slow cooling until it collapses, which affects hardness and distortion.
- Spray cooling and thermal management. Drops that bounce off a hot surface on a vapor cushion remove much less heat than drops that wet it.
- Nuclear and power plant safety. Film boiling on a hot surface sharply cuts heat transfer, so engineers design cooling systems to avoid it or to rewet the surface quickly.
- Drop handling and microfluidics. Drops riding on vapor have almost no friction, so they can be guided or self propelled across textured surfaces (Linke et al., 2006).
- Cryogenics. Liquid nitrogen spilled on a warm floor or skin skates on its own vapor for a moment, which is why small splashes often roll away.
Is it safe to try the Leidenfrost effect at home or with liquid nitrogen?
Use only a few small drops of water on a dry pan. Never pour water into hot oil, keep your face and hands back from splatter, and do not try it with liquid nitrogen without training and protective equipment. The brief vapor layer on skin is not protection.
How was this page created?
- Drafting assistance. An initial draft was created with AI assistance (Claude Opus 5.5).
- Technical review. Reviewed and edited for technical accuracy by our technical reviewer.
- Verification steps. Temperatures, mechanisms and key claims are checked against the cited sources before publication.
- Updates. Reviewed every 12 months or when new evidence changes a claim.
Where can you go deeper?
These pages cover the methods, standards and data behind this post.
- Buying guide: Best Contact Angle Goniometer for Teaching & Academic Labs
- Classroom experiment: Teaching Curriculum Hub (4 / 8 / 12-lab tracks)
- Tool: Free Contact Angle Tool
- Related post: The coffee-ring effect
- Related post: The science of anti-fog coatings
Check how your surface wets before you heat it
See a water contact angle measured on a sample like yours with automatic edge and baseline detection, in a short call.
Frequently Asked Questions
How do you get the Leidenfrost effect?
Put a small drop of liquid on a surface hotter than that liquid's Leidenfrost point. For water on a smooth pan this is often near 200°C, but the exact value depends on the surface, the liquid, the pressure and how the drop arrives.
What is the Leidenfrost effect on skin?
When a cryogenic liquid such as liquid nitrogen touches warm skin, part of it vaporises at once and a brief vapor layer forms. It can let a tiny splash roll off, but it lasts only a moment. Liquid trapped in clothing, gloves or skin folds can still cause serious cold burns.
What is the Leidenfrost effect used for?
It is studied and controlled in quenching, spray cooling and thermal management, where engineers often want to suppress the vapor film, and used in drop handling and microfluidics, where near frictionless drops can be guided across textured surfaces.
Is there a temperature that is too hot for the Leidenfrost effect?
No single upper limit applies. The useful benchmark is the Leidenfrost point, the lowest surface temperature at which a stable vapor film forms. Above it the film persists; the question is whether a given surface is above or below that point for a given liquid.
Why does wettability change the Leidenfrost point?
A surface the liquid wets well pulls liquid back into contact and tends to break the vapor film, while a water repellent, textured surface helps the film hold. That is why a room temperature contact angle is a useful first check.
