Dyne pens (US$108.80 to US$149.60 per set)
Quick threshold check for treated surfaces on the line. No angle measurement and no record. Price: ACCU DYNE TEST sets of 16 to 22 pens, checked 23 October 2026.
Contents
A Practical Guide to
Buying Goniometers for
Contact Angle
Measurement
Last Updated
May 18, 2026
No obligation. We recommend the right fit, even if it isn't ours, or send 5 samples for a free test.
Short answer: for a lab buying under US$5,000 that needs more than a static angle, our pick is the Dropometer (US$4,990 base kit); the runner up is Ossila (US$3,000 excl. VAT) for static angle only. Regulated, fully automated QC needs a premium benchtop from KRÜSS, Biolin, DataPhysics or ramé-hart, mostly sold by quote. Prices checked 23 to 25 October 2026. We make the Dropometer. This guide covers contact angle goniometers, also called contact angle meters and drop shape analyzers, not biomechanical joint goniometers.
2 peer-reviewed validation studies
52 customer publications
In use at 10+ universities
We make one of the 6 instruments compared, and we say so
Written by
Abhimanyu Bhandankar
Holds an MBA from Schulich School of Business and a BE in IT. He joined Droplet Lab in July 2019 and now leads sales and marketing.
CEO at Droplet Lab
Read More
Reviewed by
Gurdeep Singh Saini
Holds a BASc in Mechanical Engineering from Ryerson University (now Toronto Metropolitan University) and an MASc from York University. He develops the automatic edge and baseline detection behind the Dropometer's analysis.
COO at Droplet Lab
Read More
Market map & fit
Ossila benchtop (US$3,000 excl. VAT)
Static contact angle + pendant drop surface tension; manual workflow; mains power and a Windows PC; no add-on stages listed. Price checked 23 October 2026.
DIY camera + ImageJ (free software; camera about US$20 to US$1,000)
Good for learning. Static contact angle only, manual, slow. Camera cost as estimated by the OpenDrop authors.
Dropometer (US$4,990 base kit)
Battery powered, works offline. Static, dynamic and sliding contact angle (sliding with the US$700 tilt stage), surface energy and pendant drop surface tension. Published accuracy 0.35° against a KRÜSS DSA100E. Custom fixtures: fabric frame for textiles; clamp-on holder for in-situ slabs and countertops.
Handheld industrial, e.g. Brighton SA 5001 (quote only)
One button water contact angle screening on production lines, about 2 seconds per reading. Water contact angle only: no surface tension or multi liquid surface energy.
Premium benchtops (KRÜSS, Biolin, DataPhysics, ramé-hart; mostly quote only)
Full scope + motorised automation + environmental control, for regulated and high throughput labs. New KRÜSS, Biolin and DataPhysics systems are quote only. A refurbished KRÜSS DSA100S listed at €23,864 excl. VAT, and ramé-hart puts its models at about US$5,000 to US$25,000 (both checked 25 October 2026).
Droplet Lab Education Kit (US$999 per unit)
Classroom goniometer for contact angle + surface tension. Durable reprintable parts, setup in about five minutes, POGIL-aligned experiments. Teaching only, not for research.
Who should buy what
Premium benchtops
Premium benchtop systems (KRÜSS DSA100, Biolin Theta Flex, DataPhysics OCA, ramé-hart) rank first for advanced research at 4.4 out of 5: motorised dosing, environmental chambers and the widest range of methods. The Dropometer is second at 4.0 for teams that need contact angle, surface tension and surface energy with a published 0.35° accuracy, at US$4,990.
Dropometer (Droplet Lab)
The Dropometer ranks first under US$5,000 at 4.4 out of 5: static, advancing, receding and sliding angle (sliding with the US$700 tilt stage), surface energy and pendant drop surface tension, 0.35° accuracy against a KRÜSS DSA100E, and no software fees. Ossila (US$3,000 excl. VAT) is runner up at 3.3 if you only measure static angle on flat samples.
Dropometer (Droplet Lab)
The Dropometer ranks first for production QA at 4.3 out of 5: image based results anyone can recheck, setup in about 2 minutes, and one unit per line at US$4,990. The Brighton Surface Analyst 5001 is second at 3.9 and is faster per reading (about 2 seconds); choose it when a water contact angle pass or fail is all you need.
Droplet Lab Education Kit
For teaching only, the Droplet Lab Education Kit ranks first at 4.0 out of 5: US$999 per unit, contact angle and surface tension, built for student handling. The Dropometer is second at 3.9 when the same lab also runs research and needs dynamic angles and surface energy.
Premium benchtops
Premium benchtops rank first for regulated, automated high throughput QC at 4.3 out of 5: motorised dosing and stages, and vendor software suites with regulated options. Ask each vendor in writing about 21 CFR Part 11 and IQ/OQ/PQ. The Brighton Surface Analyst 5001 is second at 3.6 for one repeated pass or fail check; the Dropometer is third at 3.3 because it has no audit trail or e-signatures.
Dropometer (Droplet Lab)
The Dropometer ranks first for field and on-site testing at 4.4 out of 5: battery powered, works offline after one time activation, under 2.5 kg, and measures static, dynamic and sliding angle plus surface tension on site. The Brighton Surface Analyst 5001 is second at 3.8 for fast water contact angle checks. KRÜSS and DataPhysics also sell portable instruments.
DIY camera + ImageJ
A camera with free ImageJ software ranks first for occasional or lowest budget testing at 3.6 out of 5: the software is free and a usable camera costs about US$20 to US$1,000, and cost carries half the weight on this page. Dyne pens are second at 3.4 for a fast pass or fail on treated film. Ossila (US$3,000 excl. VAT) is third at 3.0 but is the pick if you want a ready made instrument with ±1° stated accuracy.
Decision workflow
- Map use cases & accuracy needs
- Pick scope & automation
- Ensure traceability & data security
- Validate modularity for future upgrades
- Compare Total Cost of Ownership vs. performance.
Risk and safeguards
-
Fitting/model bias Circle vs. Young-Laplace/ADSA can give different angles on the same drop, and surface-energy models (equation-of-state vs. Oss & Good) can differ materially on the same data. Ask vendors to re-analyze the same droplet with multiple models, provide residuals, and report which model produced each number.
-
Operator bias (R&R) Run a 3-operator, 10-part gage R&R mini-study before you standardize; ask vendors for R&R templates and example studies.
-
Environmental sensitivity If your liquids/surfaces are temperature- or humidity-sensitive, require or plan for an environmental module and traceable logs.
-
Traceability gaps Require exportable audit trails, time-stamped calibrations (spheres or certified liquids), and non-cloud offline mode where policy demands it.
-
Fixture/sample geometry For curved, porous, or fabric samples, confirm repeatable custom holders exist before buying.
-
Total cost surprises Capture consumables, calibration intervals, and service SLAs in the written quote not just the sticker price.
Why Contact Angle Matters
Contact angle quantifies how a liquid spreads or beads on a surface. Lower angles mean better wetting and higher surface energy; higher angles signal more hydrophobic, low-energy surfaces. In practice this single parameter shows up in coating and printing adhesion, plasma/flame treatment verification, microfluidic channel performance, biomaterial and implant compatibility, and packaging barrier properties. Tracking contact angle (and related metrics like surface energy and sliding angle) lets you catch a surface drifting out of spec, compare treatments or suppliers, and connect surface prep to real-world failures such as poor adhesion, fouling, or leakage. For details on wetting theory, fitting methods, and applications across various industries, check out our guide: Contact Angle Measurement: The Definitive Guide. New to the terms? See our surface science glossary, or browse all buying guides for surface science instruments.
11 Things to Check Before You Buy a Contact-Angle / Surface Energy Analyzer
Measurement scope
Confirm static and dynamic contact angle, sliding angle , surface tension, and surface energy measurements now or via upgrade so you don't hit a wall later.
Optics & Software
Look for a high-quality lens, HD camera, even backlighting, ADSA/Young–Laplace fitting, and batch analysis. Image capture and processing drive precision.
Automation Level
Manual vs. motorized dosing/tilt depends on throughput and operator skill. High-volume labs benefit from automated dosing, tilt, and analysis.
Calibration & Traceability
Need ISO-compliant workflows or audit-ready reports? Require built-in calibration routines, traceable references (spheres or certified liquids), and exportable logs.
Portability & Power
For non-lab use, prioritize compact, durable, battery-powered, offline-capable systems with fast setup.
Environmental Control
Sensitive materials may need temperature/humidity modules (built-in or add-on) plus traceable digital logs.
Accuracy & Repeatability
High-sensitivity work (advanced coatings, microfluidics) needs a published accuracy figure measured against a reference instrument; general QA/QC tolerates ±1°. Verify manufacturer specs and operator-to-operator repeatability. Remember: display resolution such as 0.01° is not accuracy (see FAQ).
Data Handling & Connectivity
Secure/regulated labs: confirm fully offline operation, local storage, and encrypted exports / audit trails without cloud dependency.
Modularity & Upgradability
Choose a platform that adds automated droppers, motorized tilt, high-speed cameras, and environmental chambers so you don't replace the whole system.
Build Quality & Support
Assess hardware durability and the support model: warranty, training, software-update commitment, service.
Cost & Ownership Model
Weigh total cost of ownership: calibration, software, accessories, training, maintenance not just sticker price. Ask about lease-to-own and academic pricing.
Comparison of Contact Angle Measurement Methods & Devices
When picking a contact angle measurement tool, consider these factors:
- Real-world capabilities
- Portability
- Automation
- Cost
Dyne Test Pens: Fast, Low-Cost Wettability Checks
Best for quick, qualitative wettability checks; not for calibrated, reportable measurements.
Avoid when you need industrial QA, scientific reproducibility, or any need for traceability/broader measurements.
Dyne pens (also called corona test pens / Sherman pens) apply fluids with known surface tension. A continuous line suggests the surface energy meets or exceeds the pen value; beading/breaks suggest it is lower.
Use procedures aligned with ISO 8296 and treat this as a fast screening tool rather than a replacement for contact angle instrumentation.
Where they’re used
Packaging, automotive, aerospace, and quick confirmation of plasma/flame treatment on polymers.
Why teams pick them
Instant, inexpensive, and simple for line-side go/no-go checks on production lines.
Pros
Very low cost; no training required
Instant visual feedback
Pocket-sized and field-ready
Cons
Qualitative only; no contact angle, surface tension or hysteresis values
Operator-dependent
Hazardous fluids with limited shelf life
No stated calibration/traceability features
No digital logging/export
Full side-by-side → Dropometer vs Dyne Test Pens

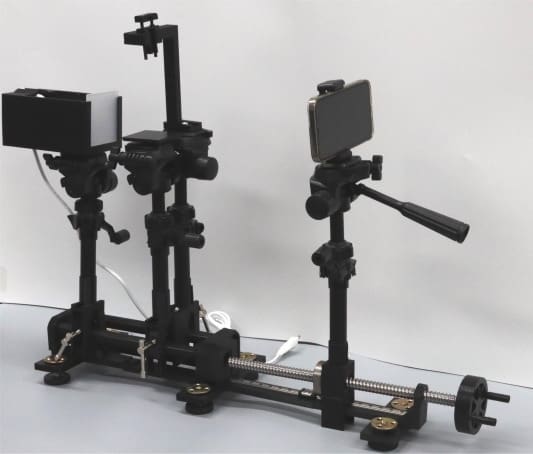

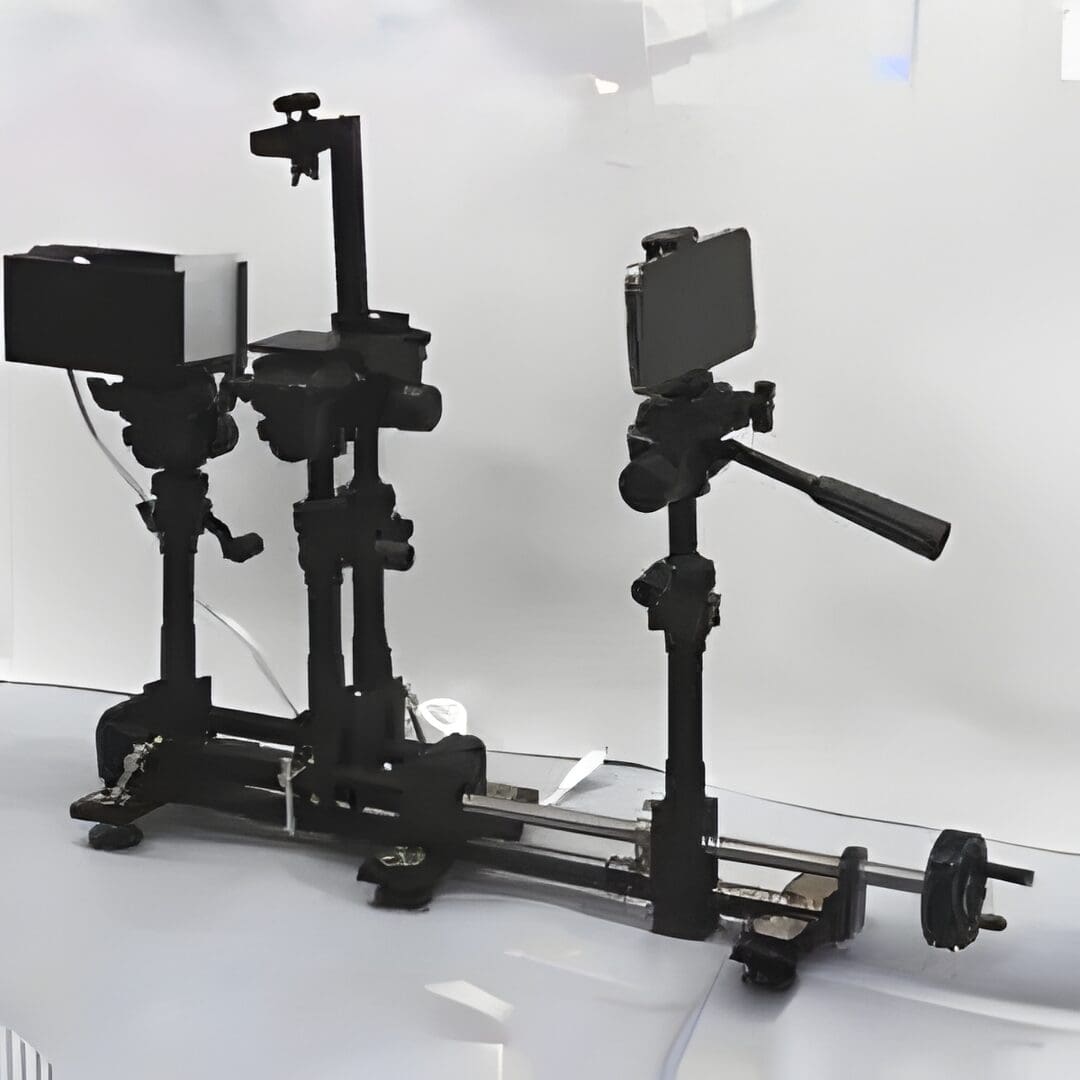

DIY ImageJ Contact Angle Measurement: Static-only, ultra-low cost
Great learning tool for static angles; not a substitute for purpose-built goniometers.
Avoid when you need industrial QA, scientific reproducibility, or any need for traceability/broader measurements.
This budget-friendly method uses a droplet (often water) on a test surface. You capture a side photo with a smartphone/camera and analyze the image in software like ImageJ using contact-angle plug-ins. Users trace the droplet profile manually to estimate the angle where the liquid meets the solid.
Published protocols can improve consistency, but operator technique and lighting still drive large variability.
When to use
Teaching, proof-of-concept work, or one-off static angles on a tight budget.
Who uses it
Researchers and educators teaching wetting principles, or occasional users who do not need to invest in hardware.
Pros
Extremely low cost (camera + free software)
±1° accuracy possible with care
Good for teaching fundamentals
Cons
Time-consuming manual workflow; not suitable for high-volume testing
Only supports static angle without complex add-ons
Operator-dependent; strong lighting/optics sensitivity
No built-in calibration/traceability for QA/regulatory workflows
No upgrade path without custom rigs/add-ons
Full side-by-side → Dropometer vs DIY ImageJ Contact Angle Measurement
Ossila Contact Angle Goniometer: Accurate, affordable bench unit for static Contact Angle but not built for automation, dynamic CA, or regulated environments.
Accurate, affordable bench unit for static CA + pendant ST, but not built for automation, dynamic CA, or regulated environments.
Avoid when you need high-throughput, regulated QA, or advanced dynamic analysis requiring automation + traceability.
The Ossila Contact Angle Goniometer is a small, affordable benchtop tool for surface analysis at US$3,000 excluding VAT (ossila.com, checked 23 October 2026). It includes a precision-adjustable stage, a high-resolution camera, and manual syringe/drop deposition for static contact angle work and basic pendant-drop measurements.
Core capability
Static contact angle (~5–180°) and pendant-drop surface tension (model-based fit).
When to use
Academic groups, QA teams, or startups needing accurate static CA + pendant ST without automation.
Who uses it
Academic labs, small/medium QA teams, and startups validating polymers/thin films/plasma/coatings.
Pros
Affordable (US$3,000 excl. VAT); 2-year warranty
±1° stated accuracy; static Contact Angle + pendant drop measurements
Compact and semi-portable
Software supports pendant-drop fitting (Young–Laplace principle) and polynomial analysis
Cons
Manual sample handling; no automation for dosing or tilt
Limited dynamic measurement capability
Stage leveling only: no sliding-angle tilt stage
Requires mains power and a Windows 11 PC: no battery operation
No environmental controls, calibration logs, or upgrade path
Full side-by-side → Dropometer vs Ossila Contact Angle Goniometer
Dropometer: Portable contact angle, surface tension and surface energy kit with published accuracy
Published 0.35° accuracy and contact angle, surface tension and surface energy in one portable, offline, upgradeable kit; fewer built-in automation features than premium benchtops.
Designed as a portable field/lab-ready system with offline operation.
Manual prep steps still matter for consistency.
Avoid if your workflow requires a fully closed high-throughput robotic line with no operator involvement.
The Droplet Lab Dropometer is a smartphone-based instrument (phone included) in a portable kit under 2.5 kg, with offline DropletAI image analysis for contact angle, surface tension and surface energy workflows. Full specifications are on the Dropometer contact angle and surface tension kit page.
Key Specs
- Instrument accuracy (datasheet): 0.35° (CA) against a KRÜSS DSA100E, 0.03 mN/m (ST)
- Display resolution: 0.01° (CA), 0.01 mN/m (ST); resolution is not accuracy
- Algorithm accuracy on ideal synthetic drops (peer-reviewed): ≤0.01% (CA), ≤0.001% (ST)
- Real-world agreement vs. KRÜSS DSA100E: typically ≤1–2°, up to ~3° on superhydrophobic surfaces (published)
- CA range: 10°–175° (datasheet); published validation spans 10°–162°
- Pendant-drop surface tension range: up to ~75 mN/m
- Surface-energy models: Neumann (equation of state), Fowkes, Oss & Good, derived from multi-liquid contact angle (Owens–Wendt not supported). Note: equation-of-state and acid–base (Oss & Good) models can give materially different SE values, so always report the model used.
- Weight: under 2.5 kg; footprint 30 × 15 × 45 cm
- Power/data: battery (up to 8 h); fully offline; optional cloud sharing (off by default)
- Price: US$4,990 base kit (checked 23 October 2026); lease-to-own from ~$2,000; no recurring software fees
Core capability
Static, advancing, receding, sliding angle + pendant-drop surface/interfacial tension with portable/offline workflow.
When to use
When you need validated Contact Angle / Surface Tension / Surface Energy measurements in the lab or field, with portable hardware and offline workflows.
Who uses it
Universities, QA teams, field engineers, and R&D groups needing broad capability without heavy infrastructure.
Pros
Published 0.35° accuracy; static/dynamic/sliding + pendant-drop ST + surface energy
Portable (under 2.5 kg), battery-powered, offline operation; phone included
Fully automated analysis (DropletAI); optional dosing & tilt modules
Upgradeable; 5-year warranty plus 5 years of free software upgrades
Cons
Higher price than entry-level units such as Ossila (US$3,000)
Fewer built-in automation features than premium benchtop systems
Manual sample prep and drop placement
No audit trail or e-signatures; not a 21 CFR Part 11 system
Validated measurement approach
Independent benchmarking and publication-based validation references.
For QA engineers who need defensible data
A wetting measurement is only defensible if the instrument producing it has been independently validated. The references below cover instrument accuracy (0.35° against a KRÜSS DSA100E, a recognised reference instrument, in peer review) and measurement system capability (Gage R&R). The Dropometer exports images and CSV results but has no audit trail or e-signatures, so lot, operator and timestamp records belong in your own quality system.
The calibration section that follows defines the ongoing controls your QMS needs to rely on this data during an external review.
Benchmark Validation
Our contact angle and pendant drop surface tension methods have been benchmarked against KRÜSS DSA100E reference measurements.
Publication Evidence
Our instruments are referenced in peer-reviewed journals, theses, and conference publications.
“
Measurement system validation: Gage R&R
Also, I wanted to let you know we completed our gage R&R study on the unit we have and it performed very well.
Brandon Barbee Corporate Quality Engineer, Development, Zeus Company LLC

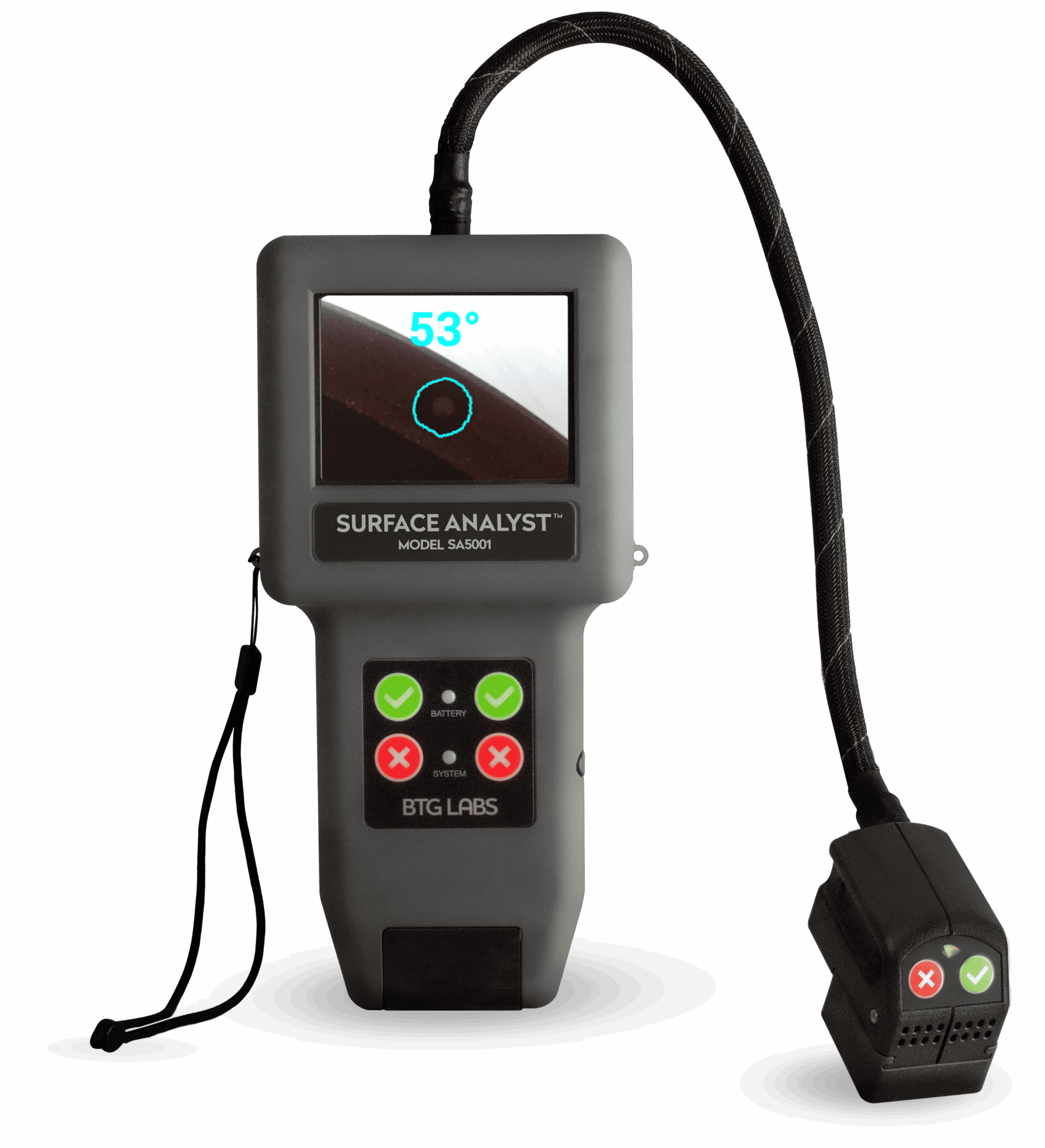

Example: Brighton Science Surface Analyst 5001
Handheld Surface Analyzers (Industrial QC): One-button, fast on-line checks
Fast, handheld pass/fail for industrial cleanliness/adhesion checks: excellent for QA lines, not for research-grade breadth or traceable science.
Avoid when you need measurements for research/education, multi-fluid studies, dynamic angles, or rigorous scientific traceability/data depth.
Handheld contact angle analyzers test surfaces quickly on production lines, often using a purified water droplet in a top-down, non-destructive workflow. At the press of a button they provide a contact-angle-related result and, in many cases, a pass/fail indicator in seconds.
They are ideal for line readiness checks, not full wetting characterization.
Key Specs
- Test time ~2 seconds
- Mode: static water contact angle only (top-down)
- Automation: fully automated one-button workflow
- Portability: handheld / battery powered
- Expandability: closed or minimal
Core capability
Static contact angle only (top-down, non-destructive). No dynamic angles, surface tension, or surface energy.
When to use
Fast pass/fail cleanliness/adhesion checks on production lines with repeatable one-button operation.
Who uses it
Automotive, electronics, packaging, and aerospace QA/QC teams needing fast readiness checks.
Pros
Extremely fast, one-button operation (2s test cycle)
Field-ready rugged design (~0.5 kg)
Minimal training required
USB / RS-232 / Ethernet API, on-device storage ~40,000 images, trend display on device; Ideal for QA validation on the line
Cons
Scope limited: Static Contact Angle Only, No advancing/receding, sliding angle, Surface Energy/Surface Tension
Speed over depth: simple numeric or go/no-go vs standards; limited scientific traceability/raw data
Accuracy not specified in datasheet; performance tied to calibration/consumables
Closed system; proprietary water cartridges; minimal expandability
Best for QA lines, not research/education or multi-fluid studies
Full side-by-side → Dropometer vs Handheld Surface Analyzers
Example: KRÜSS DSA100, Biolin Theta Flex, DataPhysics OCA
Premium Benchtop Goniometers: Maximum Capability & Automation for Advanced Research & QA
Fully featured lab platforms delivering static, advancing, receding and sliding contact angle, pendant drop surface and interfacial tension, surface energy, automation and traceability options: costly, non-portable, and best for advanced or regulated workflows.
Avoid when you need field use, budget-limited labs, or simple/occasional measurements where portability matters.
Traditional benchtop contact angle goniometers/tensiometers are fully featured lab systems with motorized hardware and advanced software for comprehensive surface characterization in controlled environments. They provide the best performance and traceability, but require budget, training, and lab infrastructure.
Key Specs
- Resolution: CA 0.01°, ST/IFT 0.01 mN/m (accuracy vendor-specific)
- Instrument accuracy (KRÜSS DSA100E datasheet): 0.1° (CA)
- Automation: XYZ + Multi-syringe + Tilt
- Scope: CA (static/dynamic/sliding) • SE • ST/IFT
- Environment Control: Optional temp/humidity
- Footprint: ~555 × 375 mm; ~24 kg Benchtop, non-portable
- Price: new systems quote only; refurbished KRÜSS DSA100S €23,864 excl. VAT (KRÜSS shop, checked 25 October 2026); ramé-hart about US$5,000 to US$25,000 by model
- Data & connectivity: Batch QC, regulatory submissions, academic publishing; robust export/automation (e.g., KRÜSS ADVANCE).
Core capability
Static / advancing / receding Contact Angle, sliding/roll-off via motorized tilt, surface energy (Owens–Wendt, Fowkes, Zisman), Surface Tension/Interfacial Tension (pendant drop/rising bubble).
When to use
Use when you require maximum accuracy, automation, traceability, and module expandability for regulated/mission-critical work.
Who uses it
High-end research labs, industrial R&D, and regulated QA needing top accuracy, automation, and traceability.
Pros
High resolution: 0.01° (CA), 0.01 mN/m (ST/IFT); highly repeatable under controlled conditions.
Motorized XYZ, programmable multi-syringe dosing, automated tilt, batch processing.
High-resolution / high-speed optics (up to 3450 fps), real-time fitting
Traceability: built-in calibration routines and certified standards; audit trail and 21 CFR Part 11 options vary by vendor and software, so ask in writing
Modular & scalable: Add liquid handling, temperature/humidity control, special sample holders.
Cons
Expensive: new systems are quote only, plus training, install, service and modules.
Not portable; large lab footprint, fixed lab install, stable power + PC required.
Requires trained personnel and a dedicated setup; overkill for basic or occasional surface energy measurement needs.
Full side-by-side → Dropometer vs Premium Benchtop Goniometers
Goniometer Buyer's Comparison Matrix
Quick Summary
| Dyne Pen | DIY + ImageJ (Student / Low Budget) | Ossila | Dropometer | Brighton SA 5001 | Premium Benchtop | |
|---|---|---|---|---|---|---|
| Quick summary | Quick checks | Student / low budget | Basic academic | Portable R&D | Factory quality control | Advanced research |
| Price (source, date checked) | US$108.80 to US$149.60 per set of 16 to 22 pens (ACCU DYNE TEST, 23 Oct 2026) | Free software; camera about US$20 to US$1,000 (OpenDrop authors' estimate) | US$3,000 excl. VAT (ossila.com, 23 Oct 2026) | US$4,990 base kit (Droplet Lab, 23 Oct 2026) | Quote only (23 Oct 2026) | New: quote only. Refurbished KRÜSS DSA100S €23,864 excl. VAT (KRÜSS shop, 25 Oct 2026) |
Capabilities
| Dyne Pen | DIY + ImageJ | Ossila | Dropometer | Brighton SA 5001 | Premium Benchtop | |
|---|---|---|---|---|---|---|
| Measurement scope | Surface energy threshold only | Static contact angle (water) |
|
|
Static contact angle only (water) |
|
| Stated performance spec (resolution / accuracy, where published) | Qualitative only | ≈ ±1° (user dependent) | ±1° (stated) |
|
Not stated in manual (water only) | 0.01° resolution / 0.01 mN/m; 0.1° instrument-based accuracy (example: KRÜSS DSA100E) |
| Optics & software | - |
|
|
|
|
|
Usability
| Dyne Pens | DIY + ImageJ | Ossila | Dropometer | Brighton SA 5001 | Premium Benchtop | |
|---|---|---|---|---|---|---|
| Automation | Manual | Manual | Software assisted |
|
One-button automated |
Fully Automated(XYZ + Tilt + Dosing) |
| Data & connectivity | - |
Manual image files |
Video / image recording |
|
- On device trends - Storage (40k tests) - USB / Ethernet API |
- Advanced analytics - Batch logging |
| Calibration & traceability | - | - |
Basic (Calibration sphere) |
Calibration prompts; image and CSV export; no audit trail or e-signatures | On-device audit logging / user management; not a vendor-validated (21 CFR Part 11) software stack | Full logs; 21 CFR Part 11 options vary by vendor and software, ask in writing |
Logistics
| Criteria | Dyne Pens | DIY + ImageJ | Ossila | Dropometer | Brighton SA 5001 | Premium Benchtop |
|---|---|---|---|---|---|---|
| Portability | Pocket-sized | Portable / Tripod | Mains Power Benchtop | Portable (under 2.5 kg, battery) | Handheld (~0.5 kg, battery) | Lab-only (~24 kg) |
| Build quality | Disposable | DIY / Ad-hoc setup | Durable academic-grade; 2-yr warranty |
|
|
|
| Modularity | - | - | No add-on stages listed | Modular (Tilt, droplet control, holders) | Closed System | Highly modular (Dosing, tilt, climate) |
| Env. Control | - | - | - | Optional (Enclosures / Upgrade path) | - | Full Modules (Temp, Humidity, etc.) |
How to Use This Table
Each tool has its place. The key is matching the instrument to your lab's measurement needs, volume, maturity, and reporting requirements.
Match your top 3-4 criteria (e.g., automation, portability, accuracy, traceability) to the column that best satisfies them.
Use the modularity and future-proofing row if you expect to scale your measurement capabilities later.
Refer to the price row last: cost should follow function once you've aligned with your primary measurement needs.
Peer-reviewed benchmarking
The Dropometer's foundational measurement algorithm has been validated in two published studies, both benchmarked against the KRÜSS DSA100E. An important distinction for technical readers: the headline error figures below are the algorithm's numerical accuracy against ideal, computer-generated synthetic drop profiles - they characterize the curve-fitting math, not end-to-end instrument accuracy. In side-by-side measurements against the benchtop instrument, agreement was typically ≤1-2°, rising to ~3° on superhydrophobic surfaces. The 0.35° figure is the datasheet instrument accuracy under controlled conditions; the cross-instrument figure also absorbs the benchtop's own error and surface non-ideality. Resolution and synthetic-drop fitting accuracy are not the same as real-world accuracy.
≤0.01% Contact angle - mean algorithm error across 2,049 synthetic drops (10°-162°), Young-Laplace and polynomial fitting
Review of Scientific Instruments (2018) · Chen, Muros-Cobos and Amirfazli · DOI 10.1063/1.5022370
≤0.001% Surface tension - mean algorithm error across 750 synthetic drops, axisymmetric drop-shape analysis
Colloids and Surfaces A (2017) · Chen, Muros-Cobos, Holgado-Terriza and Amirfazli · DOI 10.1016/j.colsurfa.2017.08.019
DropletAI - fully automated analysis (2026)
Building on that peer-reviewed foundation, Droplet Lab developed DropletAI, a convolutional-neural-network model (transfer learning) trained on 20,000+ labeled droplet images. It automates contact-point detection - including the hardest cases: strong reflections, low contrast, out-of-focus drops, and superhydrophobic surfaces - removing the manual baseline input the earlier semi-automatic method required. DropletAI is a newer development and is described in our engineering write-up rather than the two peer-reviewed studies above. How we built DropletAI →
“
Measurement system validation — Gage R&R
Overall, we've been very impressed. It's been working really well and we really have enjoyed using it. It's a bit different than what we're currently using. It's much more technologically advanced than how we currently do it, which is good. […] We've been happy with the machine learning add in too, it saves a lot of time on measurements.
Brandon Barbee, Corporate Quality Engineer, Development Zeus Company LLC
Researchers using the Dropometer
Institutions where the Dropometer is in active use. Listed as users, not endorsers.
Harvard University
Cornell University
University of Toronto
University of Alberta
Emory University
Clemson University
U. Maryland School of Dentistry
University of Manchester
South Dakota State University
University of Waterloo
References
1.
Titanium dental implants - Dental Materials (2024). https://dropletlab.com/validation/citations/
2.
Antimicrobial catheter coatings - Bioengineering (2025). https://dropletlab.com/validation/citations/
3.
Plasma treatment of titanium implants - Biomimetics (2025). https://dropletlab.com/validation/citations/
4.
Sustainable food packaging - Food Chemistry (2024). https://dropletlab.com/validation/citations/
Free · no obligation
Still skeptical? Send us your samples.
Send up to 5 samples and we'll run them on the Dropometer using the validated workflow above and share the raw data - free. Leave your email and we'll arrange the test.
We email you to arrange sample shipping and share the raw measurement data. No spam. Privacy Policy
How to Choose the Right Goniometer
Making the right choice depends on aligning your specific use case with the following 11 key criteria.
- Do you need static angle only, or also advancing/receding angles, sliding angle, surface tension, and hysteresis?
- Full capability is usually needed for research or process development (premium benchtop systems).
- For basic surface treatment checks, Dyne Pens or Brighton SA 5001 may be enough.
- If your samples are unusual (fibers, fabrics, curved parts), verify the tool can measure them repeatably.
- For scientific research or materials QA, target higher precision and repeatability.
- For general screening or pass/fail checks, lower precision may be acceptable.
- Match the instrument class to the decision quality you need.
- Manual systems (for example, DIY or simple benchtop tools) suit low-volume labs and teaching.
- Higher-throughput teams benefit from automated dosing, faster workflows, and guided software.
- Automation reduces operator fatigue and improves consistency across runs.
- For field testing or line-side factory checks, prioritize portable instruments.
- For fixed lab setups, benchtop systems can provide greater stability and control.
- Confirm the instrument fits your actual deployment environment (bench, production line, field, classroom).
- Teaching across multiple classrooms on a budget? A purpose-built classroom unit (e.g., Droplet Lab EDU, $999) usually beats one expensive shared instrument.
- Regulated labs (pharma, aerospace, medical, etc.) often need traceable workflows and clear reporting.
- Check calibration support, auditability, and documentation features before buying.
- Simpler tools may be fast and cheap but may not meet compliance needs.
- If you must test under controlled humidity or temperature, choose systems that support environmental control.
- Portable and lower-cost tools usually do not include these controls.
- Plan future upgrades early if your workflow may require environmental conditioning later.
- Advanced analysis (curve fitting, dynamic video, multi-liquid workflows) requires stronger optics and software.
- Entry-level systems can work well for simpler tasks but may need more user expertise.
- Evaluate the software UX as carefully as the hardware.
- Need offline operation? Confirm the instrument can run and store data locally.
- Need centralized reporting or team access? Check export formats and integration options.
- Define data policy requirements before selecting the instrument.
- If you may add accessories later (tilt stage, automated dosing, thermal control), choose a modular platform now.
- Some systems scale well with upgrades, while others are fixed-function.
- Buying for future growth can reduce replacement cost later.
- Look beyond the initial price: training, calibration tools, software, maintenance, and upgrades all matter.
- Compare long-term value, not only upfront cost.
- Choose the system that best fits your measurement goals, workload, and growth plans.
- Check whether the instrument is durable enough for your real use case, especially if it will be moved often, used heavily, or shared across teams.
- Review the support package carefully: warranty terms, training materials, technical support availability, and software or firmware updates.
- Build quality and dependable support should be weighed as part of long-term value, not treated as extras.
The "Hidden Specs": What Manufacturers Don't Tell You
On a datasheet, what isn't listed is often more important than what is.
Maintenance Contracts
Ask: Is the license perpetual?
Some "low-cost" benchtops require a $2,000/year service contract just to keep the software active or calibrated.
Consumable Traps
Ask: Can I use standard Luer-lock syringes?
Does the system require proprietary needles or syringes that cost 10x market rate?
The "Add-On" Game
Ask: Do I need to pay for any add-ons for my measurements?
Is the "Surface Energy Calculation" feature included, or is it a $1,500 software module unlock?
5-year cost of ownership
Compare the visible purchase price against the long-tail costs that usually decide total ownership: software, consumables, calibration, service, training, and downtime.
5-year ownership cost factors
| Cost area | Low-cost manual tools | Premium benchtop systems | Dropometer |
|---|---|---|---|
| Software licensing | Usually none, but manual analysis time remains hidden. | Often annual seats/modules or paid upgrades. | Lifetime software licence for unlimited users; no recurring software fees. |
| Consumables and lock-in | Low consumable cost, limited data depth. | Vendor consumables/accessories can add up. | Syringe and needles included in the kit; no closed consumable dependency for core workflows. |
| Calibration and service | Minimal formal support; weak traceability. | Formal service plans, shipping, and downtime may be material. | 5-year warranty plus 5 years of free software upgrades; calibration prompts in the app. |
| Training and throughput | Low training, but high operator variability. | Requires trained users and controlled setup. | Setup in about 2 minutes and automated analysis; drops are placed by hand unless you add the auto dropper. |
The right purchase decision is not only the instrument quote. Ask each vendor to price the workflow you will actually run for five years, including software renewals, accessories, calibration, service response, and the cost of downtime.
Ready to put a number against your own exposure?
Request a quote for your configuration, or talk it through with an application scientist first.
Free download
Vendor RFP Question Pack
The exact questions to send every goniometer vendor before buying. Covers software-licensing traps, consumable lock-in, calibration intervals, service SLAs, and regulated-environment requirements.
One email, no spam. We will send the PDF and occasional surface-science resources. Unsubscribe anytime. Privacy Policy
Advanced Theory Insights, Case Studies & Strategic Buying Considerations
This section will enhance your grasp of surface wetting dynamics. It connects these concepts to buying choices and shows their real-world impacts on theory and device functions.
Dynamic Wetting Behaviour & Hysteresis
The advancing angle (θa) forms at the front of a moving droplet; the receding angle (θr) at the back. The difference (θa − θr) is contact-angle hysteresis, indicating surface roughness/heterogeneity. High hysteresis causes droplet pinning, affecting coating uniformity, cleaning efficiency, and self-cleaning surfaces.
Buying Tip
If you need droplet mobility for tasks like anti-icing or self-cleaning, choose tools that measure both Advancing and Receding Contact Angles. Don't settle for just static angles.

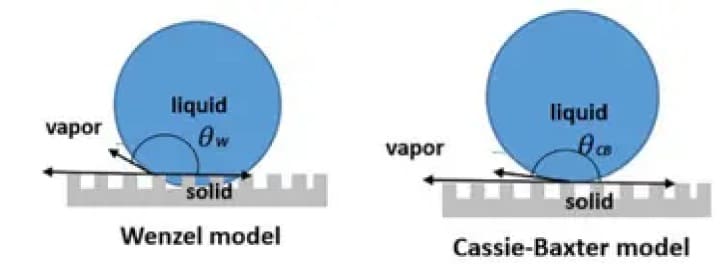

Rugged vs. Trapped Wetting States (Cassie-Baxter & Wenzel)
Wenzel State: Liquid fully wets surface roughness. Apparent contact angle increases with roughness for inherently hydrophobic surfaces.
Cassie-Baxter State: Air pockets form beneath the droplet. This creates superhydrophobicity (θ > 150°) with low hysteresis, similar to lotus leaves. Real surfaces can change states when pressure, tilt, or time affects them. This can impact reliability, such as their anti-icing ability.
Buying Tip
If you are testing textured or superhydrophobic surfaces, use instruments that can track changes in wetting states like those with tilt stage modules and dynamic hysteresis analysis.
Physics-Informed Case Studies
Superhydrophobic Coatings & Self-Cleaning
Studies show that Cassie droplets have much lower hysteresis and roll off more easily than Wenzel droplets. Droplet coalescence can jump droplets off surfaces, known as the "Lotus effect".
Fluidic Devices & Inkjet Printing
Wettability and hysteresis influence droplet movement in microfluidic channels. Even ±1° errors in θa or θr can severely impact function.
Industrial Coating & Enhanced Oil Recovery
Hysteresis is tied to dynamic wetting in coating flows and oil extraction. Measuring θa/θr accurately helps improve solvent treatments and injection fluids.
Strategic Buying Considerations from Advanced Theory
Prioritize Measurement Range & Dynamics
- Are you testing superhydrophobic surfaces? You'll need a device that supports >150° and can analyze state transitions under controlled conditions.
- Need detailed hysteresis data? Opt for systems offering dynamic dosing or tilt stages.
Optical Fidelity & Automated Analysis
- Droplet boundary clarity is critical.
- Telecentric lenses and high-resolution imaging help reduce operator errors.
- Curve-fitting software, like ADSA/Young-Laplace, supports this process.
Ensuring Repeatability
- Portable devices need to keep their optical alignment and image quality.
- This should hold for different uses and environments.
- Calibration and rugged construction are key here.
Device Modularity
- Models with modular tilt plates, environmental control, or high-speed cameras can be upgraded later.
- This means you won't need to replace the entire system.
Performance vs Cost Balance
- Top-tier benchtop systems are justified for research that needs motorised automation, environmental chambers or the widest range of methods.
- For wider use in labs or the field, the Droplet Lab Dropometer (US$4,990) covers contact angle, surface tension and surface energy with a published 0.35° accuracy at a lower price.
Summary Chart: Theory-to-Purchase Mapping
| Theoretical Insight | Why It Matters | Key Instrument Feature |
|---|---|---|
| Dynamic Wetting & Hysteresis | Controls droplet roll-off, coating uniformity | Dosing stage, tilt module, high-speed video capture |
| Cassie vs. Wenzel Wettability | Determines superhydrophobic performance under environmental stress | Measurement range >150u00b0, tilt & pressure testing |
| High Hysteresis Surfaces | Play a role in fluid handling or medical device applications | Low-noise imaging, automated edge detection, analytics |
| Surface Structure Influence | Enables reproducible and traceable surface testing | Modular accessories, calibration options, rugged device |
Reproducibility & Best Practices Checklist
Check out Droplet Lab's 10-Step Guide to Reproducible Measurements for reliable results. Here's a quick overview for buyers looking at device support.
Surface Cleaning & Conditioning
Clean handling of surfaces reduces contamination.
Leveling Protocols
Ensures accurate drop placement.
Consistent Droplet Volume and Placement
Critical for hysteresis, surface tension, and angle correctness.
Calibration Checks
Devices should support regular calibration against references.
Environmental Control
Temperature/humidity control is supported on scope for standalone or add-on.
Data Logging & Batch Analysis
Support auditability and reporting available in supported software.
Fixture traceability
The report must contain fixture identification numbers and detailed sample orientation data along with droplet coordinates, volume measurements and tilt angles. Include a setup photograph in the report to facilitate both auditing and repeatability processes.
Frequently Asked Questions
What's the difference between resolution and accuracy on a goniometer?
Resolution is the smallest angular difference an instrument can display (e.g., 0.01°). Accuracy is how close the displayed value is to the true value, typically a function of optics, fit algorithm, and droplet quality. A 0.01° resolution does not guarantee 0.01° accuracy. Vendor accuracy claims should always be verified against a known reference (calibration sphere or certified liquid).
Can the Dropometer measure superhydrophobic surfaces (>150°)?
Yes. The datasheet contact angle range is 10° to 175°, and published validation spans 10° to 162°. For sliding and roll-off angles on superhydrophobic surfaces, add the tilt stage (US$700).
Can the Dropometer measure low-hysteresis or textured surfaces?
Yes. It measures advancing and receding angles with dynamic dosing (by hand or with the auto dropper) and sliding angle with the tilt stage, so you can report hysteresis on textured surfaces.
My lab doesn't allow Smartphones, can I use the Dropometer in secure environments?
Yes. After a one time activation, measurement and analysis run fully offline on the device, and cloud sharing is off by default. Some secure sites ban any device with a camera, so check with your IT or security team first.
When should I use pendant-drop tensiometry vs Wilhelmy plate?
Pendant drop is ideal for clean, equilibrium surface tension on most liquids and is non-contact. Wilhelmy plate is preferred for dynamic tension on surfactant solutions, very low tensions, and automated multi-sample tensiometry. Most labs need pendant drop; surfactant-focused labs need both.
Does the Dropometer require a software subscription?
No. There are no recurring software fees. The instrument is sold with perpetual-license software and offline operation. Compare this carefully against any vendor quoting a "low" hardware price. Annual software-maintenance contracts of $1,500–$3,000/year are common in this category.
Do I need a tilt stage?
Only if you're measuring sliding angles, roll-off angles, or characterizing droplet mobility (anti-icing, self-cleaning, anti-fouling surfaces). For static-only QA/QC, a tilt stage is unnecessary. For dynamic wetting research it's essential.
What's the typical procurement timeline for a contact-angle goniometer?
Handhelds and benchtop entry-level units (Dyne pens, Ossila, Dropometer): 1–4 weeks from order to delivery. Premium benchtops (KRÜSS, Biolin, DataPhysics, ramé-hart): 8–16 weeks plus on-site installation. Build calibration, training, and IQ/OQ/PQ time into the schedule.
Still have questions?
How we scored and compared instruments
What we compared. Contact angle goniometers and drop shape analyzers used for wettability, adhesion and surface energy work. We did not score biomechanical joint goniometers or general purpose angle gauges.
Scoring scale. Each of the seven use case pages scores its own shortlist of three from 1 to 5 on the same 11 criteria. A 3 means it meets typical requirements for that use case, 5 means best in class, and below 3 means it does not meet what that use case requires. Scores are relative to the shortlist and the use case, so the same instrument can score differently on two pages, and a low cost tool can outrank an expensive one where the needs are modest.
Use case weighting. Each use case page publishes its weights next to every criterion score, so any reader can reproduce or challenge a result. The scores on this page are copied from those pages.
Included and excluded products. We include products only when there is enough public information to score them (manufacturer datasheets, public documentation or published validation). We exclude listings without verifiable specs, unclear product lineage, or non-comparable tools (for example dyne solutions without instrumentation, medical goniometers).
Pricing and sources. Prices and availability were checked on 23 to 25 October 2026 on manufacturer pages, named sellers, public documentation and datasheets. Where a maker publishes no price, we say quote only instead of estimating. Feature claims come from manufacturer documentation unless noted.
Last reviewed. This page was last reviewed on 25 October 2026. We update scores when manufacturers change specs or software, or when new public validation becomes available.
Corrections. If you see an error or a spec has changed, please submit a correction. Verified updates are typically reflected within 5 business days.
Disclosure. Droplet Lab makes the Dropometer. See the disclosure statement above on this page.
Best Contact Angle Goniometers by Use Case (a.k.a. Contact Angle Meters / Drop Shape Analyzers)
Best Contact Angle Goniometer for Advanced Research
Premium Benchtop Systems (KRÜSS DSA100 / Biolin Theta Flex / DataPhysics OCA / ramé-hart)
4.4
Premium benchtop systems rank first for advanced research because they cover static, advancing, receding and sliding angle, surface energy and pendant drop surface tension with motorised dosing, tilt and environmental modules. New systems are quote only; a refurbished KRÜSS DSA100S listed at €23,864 excl. VAT (KRÜSS shop, checked 25 October 2026).
Dropometer (Droplet Lab)
4.0
The Dropometer ranks second because it covers the same core measurements (static, dynamic and sliding angle, surface energy and pendant drop surface tension) with a published 0.35° accuracy against a KRÜSS DSA100E, at US$4,990. The automatic dropper and tilt stage are options, but it lacks the robotic automation and environmental chambers of premium benchtops.
Ossila Contact Angle Goniometer
2.8
Ossila ranks third: a functional bench unit for static contact angle and pendant drop surface tension at US$3,000 excl. VAT, with ±1° stated accuracy. It needs manual operation and has no dynamic angle measurement or published validation for top level R&D.
→ Full ranking, scores and the QA-specific criteria weighting
Which is the Best Contact Angle Goniometer Under $5K?
Dropometer (Droplet Lab): US$4,990
4.4
The Dropometer ranks first under US$5,000 because it measures static, dynamic and sliding angle (sliding with the US$700 tilt stage), surface energy and pendant drop surface tension, with a published 0.35° accuracy and no software fees. Price checked 23 October 2026.
Ossila Contact Angle Goniometer: US$3,000 excl. VAT
3.3
Ossila ranks second: a bench unit for static contact angle and pendant drop surface tension, about US$2,000 less than the Dropometer, with ±1° stated accuracy. No dynamic angle, tilt stage or automatic dosing is listed, and it needs mains power and a Windows 11 PC.
DIY (Camera + ImageJ/LB-ADSA)
2.4
DIY places third: free software and a camera at about US$20 to US$1,000 make it the cheapest route and a good way to learn the method, but it is slow, operator dependent and limited to static angle.
→ Full ranking, scores and the QA-specific criteria weighting
Which is the Best Contact Angle Goniometer for Teaching & Academic Labs?
Droplet Lab Education Kit: US$999 per unit
4.0
The Education Kit ranks first for teaching: built for student handling with reprintable parts, it measures contact angle and surface tension and ships with POGIL-aligned experiments. Volume pricing is available for class sets.
Dropometer (Droplet Lab)
3.9
The Dropometer ranks second, for teaching labs that also run research: battery powered, setup in about 2 minutes, and static, dynamic and sliding angle plus surface energy and surface tension. At US$4,990 it costs about as much as five Education Kits.
DIY (Camera + ImageJ/LB-ADSA)
2.6
DIY places third: the cheapest way to teach drop shape analysis, but slow and operator dependent, with static angle only.
Teaching only, on a classroom budget? Meet the Droplet Lab Education Kit, US$999 per unit.
Our purpose-built classroom goniometer measures contact angle and surface tension, sets up in about five minutes, survives student handling (MJF-printed, reprintable parts), and ships with POGIL-aligned experiments. Volume pricing to ~$869/unit (10+). It's in teaching use at the University of South Florida, where Dr. John Figueroa (Assistant Director of Teaching Labs) called it evidence of "a commitment to supporting educational needs." If you don't need the Dropometer's dynamic, sliding and surface energy measurements and peer-reviewed method, the Education Kit, or a DIY rig for one-offs, is the smarter spend.
→ Full ranking, scores and the QA-specific criteria weighting
Best Contact Angle Goniometer for Industrial QA / Production Line
Dropometer (Droplet Lab)
4.3
The Dropometer ranks first for production QA because results are image based and can be rechecked, setup takes about 2 minutes, and one unit per line costs US$4,990. It suits QA that needs reportable numbers rather than a pass or fail light.
Brighton Science Surface Analyst 5001
3.9
The Surface Analyst 5001 ranks second: a handheld water contact angle reader at about 2 seconds per measurement that stores 40,000 images and links to an MES over RS232 or Ethernet. Quote only; water only, with no surface tension or multi liquid surface energy.
Dyne Pens
2.4
Dyne pens rank third: the fastest and cheapest threshold check (US$108.80 to US$149.60 per set of 16 to 22 pens, checked 23 October 2026), but qualitative, operator dependent and with no record.
→ Full ranking, scores and the QA-specific criteria weighting
Best Contact Angle Goniometer for Field / On-site Testing
Dropometer (Droplet Lab)
4.4
The Dropometer ranks first for field work: battery powered, works offline after one time activation, under 2.5 kg, and measures contact angle and surface tension on site with full data export.
Brighton Science Surface Analyst 5001
3.8
The Surface Analyst 5001 ranks second: the fastest field reading here at about 2 seconds, but water contact angle only, quote only, and no published accuracy figure.
Dyne test pens
3.0
Dyne pens rank third: pocketable, no power and an instant result, but they give a threshold, not an angle, and leave no record of the site visit. Pen sets cost US$108.80 to US$149.60 and last about six months.
→ Full ranking, scores and the QA-specific criteria weighting
Best Contact Angle Goniometer for ISO/GLP-Regulated, Fully Automated High-Throughput QC
Premium Benchtop Systems (KRÜSS DSA100 / Biolin Theta Flex / DataPhysics OCA / ramé-hart)
4.3
Premium benchtops rank first for regulated, automated QC: motorised dosing and stages, vendor software suites (for example KRÜSS ADVANCE) and IQ/OQ/PQ documentation packages. Ask each vendor in writing whether its software supports 21 CFR Part 11 audit trails and e-signatures.
Brighton Science Surface Analyst 5001
3.6
Strong alternative when the regulated workflow is a narrow, repeated pass/fail check on a production line and traceability needs are met by on-device logging (~40,000 measurements). Not appropriate where multi-liquid surface-energy or dynamic-angle data is required for the regulatory file.
Dropometer (Droplet Lab)
3.3
Useful as a portable secondary instrument for spot-checks or method development inside regulated programs, but not the primary system of record for fully automated, robotically dosed high-throughput QC. Choose a premium benchtop if your workflow requires unattended robotic operation, integrated climate chambers, and validated regulated software. It has no audit trail or e-signatures.
→ Full ranking, scores and the QA-specific criteria weighting
Best for occasional / one-time or lowest-budget testing
DIY (camera + ImageJ / LB-ADSA)
3.6
For a one-off static angle or a tight-budget proof of concept, a camera and free ImageJ software rank first: no software cost and a camera at about US$20 to US$1,000. Cost carries half the weight for this use case. Slow and operator dependent, but for genuinely occasional use that rarely matters.
Dyne test pens
3.4
Dyne pens rank second: the fastest, cheapest answer to one question, whether a surface is above a given wetting tension. Pen sets cost US$108.80 to US$149.60 and last about six months; qualitative only, and the standards cover PE and PP film.
Ossila Contact Angle Goniometer
3.0
Ossila ranks third on cost: a ready made instrument with ±1° stated accuracy at US$3,000 excl. VAT, and the pick if you want a real instrument and repeatable images, but hard to justify for truly one-time use.
→ Full ranking, scores and the QA-specific criteria weighting
Got your shortlist?
Who should NOT buy the Dropometer
We make the Dropometer, and we would rather you buy a different instrument than buy ours and regret it. Here is where the Dropometer is the wrong choice:
You need fully robotic, unattended high-throughput automation. If your workflow runs hundreds of samples a day with no operator, you need motorized XYZ + multi-syringe + autosampler. Choose a KRÜSS DSA100 or Biolin Theta model.
You are filing a regulated submission requiring 21 CFR Part 11-validated software with vendor IQ/OQ/PQ. The Dropometer works offline and exports images and CSV results, but it has no audit trail or e-signatures and is not delivered with a vendor-validated regulated software stack. Choose a premium benchtop with a regulated software suite.
You only need a teaching instrument, or your budget is under $1,000. For classrooms, our purpose-built Droplet Lab EDU ($999) is the better fit; for one-off or accuracy-non-critical checks, a DIY ImageJ rig or dyne pens will do. The Dropometer is overkill.
You cannot or will not use a smartphone in your facility, and offline-only mode does not satisfy your IT policy. Some secure facilities prohibit any device with a camera. Talk to your IT/security team first.
You need measurements at controlled temperature or humidity, or high-speed video of fast spreading. The Dropometer has no built-in temperature or humidity chamber and uses a smartphone camera rather than a dedicated high-speed camera. Choose a premium benchtop with the matching module.
If any of the above describes your situation, schedule a consultation. We will point you to the right vendor even if it is not us.
