ASTM D7541-11: estimating critical surface tensions from a Zisman plot

ASTM D7541 estimates the critical surface tension of a coating, primer or plastic from how a series of liquids wet it. The Dropometer runs the drop and Zisman plot route, reading each angle with ±0.35° accuracy on a drop shape method validated in two peer reviewed papers. The swab, marking pen and draw down tests are manual tests with the test liquids, as the standard specifies.

What brings you here?

Who this is for
Paint, coatings and plastics labs, quality control teams and anyone who checks a substrate, primer or basecoat before coating or after cleaning.
Compliance tier
Partially compliant: the Dropometer runs the drop and Zisman plot route, not the swab, marking pen or draw down tests.
Measurement
Contact angle of each test liquid, 10° to 175° range, ±0.35° accuracy; liquid surface tension by pendant drop up to 75 mN/m (Dropometer datasheet).
Setup
About 2 minutes. Battery powered, 1 kg, runs at the paint line or in the lab.
Last updated
October 20, 2026
Book a 15 minute demo Request a quote

Free one page checklist for ASTM D7541: what to prepare, the settings to lock, how to build the Zisman plot and what to record. Made for paint and coatings QC benches.

Talk to an expert

Book a 15 minute demo on your coated or moulded parts

Tell us your substrate, coating and current wetting check. We will show the measurement live and tell you plainly which part of ASTM D7541 the Dropometer runs and which it does not.

Book a 15 minute demo
View the official standard
Gurdeep-Saini-Photo
Written by
Gurdeep Singh Saini
Holds a BASc in Mechanical Engineering from Ryerson University (now Toronto Metropolitan University) and an MASc from York University. He develops the automatic edge and baseline detection behind the Dropometer's analysis.
COO at Droplet Lab
Read More
Droplet-Lab logo
Technical Review by
Droplet Lab Team
Droplet Lab builds precision instruments and software for surface science measurement, specialising in contact angle analysis and surface tension characterisation. Used by researchers across materials science, pharmaceuticals, coatings, and advanced manufacturing, Droplet Lab's Dropometer has contributed to studies published in peer-reviewed journals including Advanced Functional Materials (Impact Factor 19). The team combines instrument engineering with deep domain knowledge in wettability science with a focus on practical accuracy.
Read More
Verified against ASTM D7541-11
Gurdeep-Saini-Photo
Written By

Gurdeep Singh Saini

COO at Droplet Lab

Holds a BASc in Mechanical Engineering from Ryerson University (now Toronto Metropolitan University) and an MASc from York University. He develops the automatic edge and baseline detection behind the Dropometer's analysis.

Droplet-Lab logo
Reviewed By

Droplet Lab Team

Droplet Lab builds precision instruments and software for surface science measurement, specialising in contact angle analysis and surface tension characterisation. Used by researchers across materials science, pharmaceuticals, coatings, and advanced manufacturing, Droplet Lab's Dropometer has contributed to studies published in peer-reviewed journals including Advanced Functional Materials (Impact Factor 19). The team combines instrument engineering with deep domain knowledge in wettability science with a focus on practical accuracy.

Featured Studies & Publications

Research Paper Contact angle measurement with a smartphone
Research Paper Surface tension measurement with a smartphone using a pendant drop

Evidence box

Standard

ASTM D7541-11(2022), Standard Practice for Estimating Critical Surface Tensions, from ASTM Subcommittee D01.23. It was first issued in 2009, revised in 2011 and reapproved in 2015 and 2022.

Compliance tier

Partially compliant. The Dropometer measures the contact angle of each test liquid for the Zisman plot and shows whether a drop wets or beads. It does not run the swab, marking pen or draw down tests, and its software does not list a Zisman fit.

Instrument performance

Contact angle range 10° to 175°, accuracy ±0.35°, display resolution 0.01°. Pendant drop surface tension up to 75 mN/m, accuracy ±0.03 mN/m. From the Dropometer product specification.

Peer reviewed method

The drop shape method is validated against a KRUSS DSA100E in two peer reviewed papers. See our validation publications.

Customer evidence

We have no published client paper or case study on critical surface tension yet. For a related coatings workflow, see coating defects troubleshooting.

What it does not tell you

A critical surface tension is one number from a one parameter model. It does not split polar and dispersive parts, and it does not measure adhesion. Pair it with your adhesion test.

Executive summary

What this standard measures, who uses it and how the Dropometer fits

ASTM D7541 estimates the critical surface tension of a coating, primer or plastic: the highest liquid surface tension that still wets the surface fully, judged from the wetting and dewetting of a series of test liquids on it. Paint, coatings and plastics labs use knowledge of the critical surface tension to predict crawling, cratering and poor adhesion, and to check a surface before and after cleaning. The Dropometer is partially compliant: it runs the drop and contact angle route, including the Zisman plot, with ±0.35° accuracy. It does not run the swab, marking pen or draw down tests.

The practice gives two routes. In the first, you apply liquids of known surface tension, usually organic solvents, and watch whether each one wets or pulls back. In the second, you measure the contact angle of each liquid, plot cos θ against liquid surface tension and extend the line to cos θ = 1. ASTM says Zisman plots give more exact values for critical surface tension. Each angle is read where the drop edge meets the surface, at the three phase contact line.

The Dropometer contact angle and surface energy kit reads the angle of each liquid from the drop image and checks each liquid by pendant drop, up to 75 mN/m. Its software does not list a Zisman fit, so you plot the line in a spreadsheet. For coatings work, see how to stop fisheyes, craters and crawling, the paint guide and why contact angle matters for coatings and adhesives QC. For polar and dispersive parts, OWRK and Wu are not built in: measure the angles with the Dropometer and run OWRK in the free Contact Angle to Surface Energy Calculator.

Further reading: the surface energy measurement guide, reproducible surface energy calculation from contact angles, experiment 6: surface free energy with multiple liquids, surface free energy reference values for common polymers and Dropometer vs KRUSS Mobile Surface Analyzer.

How the Dropometer fits the practice for estimating critical surface tensions

The ASTM D7541 contact angle route, step by step, in our own words

From test liquids to a critical surface tension

These steps outline the contact angle and Zisman plot route. They do not cover the swab, marking pen or draw down tests, and they do not replace the standard. Buy the current edition and follow its liquids, drop size and reading rules.

±0.35°

Contact angle accuracy

From the Dropometer product specification. Display resolution is 0.01°.

75 mN/m

Pendant drop range

Check each test liquid before you plot. Accuracy ±0.03 mN/m.

About 2 min

Setup

Base plate, phone holder, LED and syringe. No PC needed.

1

Prepare the surface and the liquids

Mark the test area and handle the part by the edges. Choose a series of test liquids of known surface tension, as the standard specifies. Work in a fume hood with organic solvents, follow your safety and health rules, and check that no liquid swells or dissolves the surface in question.

2

Check each liquid by pendant drop

Measure the surface tension of each liquid by pendant drop on the Dropometer, up to 75 mN/m. Use the measured value in the plot, because purity and room temperature shift it from the handbook value.

3

Place a drop of each liquid

Dispense the same drop volume for every liquid, as the standard specifies, on a fresh area of the specimen each time. Clean or change the needle between liquids so they do not mix.

4

Read the angle or record wetting

Capture each drop at a fixed reading time, because solvents evaporate. Automatic edge and baseline detection gives the same reading from the same image. A liquid that spreads below 10° is outside the Dropometer range: record it as wetting.

5

Build the Zisman plot

In a spreadsheet, plot cos θ for each liquid against its surface tension and fit a straight line. Extend the line to cos θ = 1 and read the surface tension there. Report the slope, R² and the liquids used.

6

Compare and record

Compare the result with your accept limit. Record the liquids, angles, fit, room temperature and surface condition, such as before or after cleaning. See reproducible surface energy calculation for good practice.

7

Watch the full measurement

This video shows a complete Dropometer contact angle measurement, from setup to result. It covers the steps above in one run.

Dropometer contact angle measurement, start to finish. Repeat it with each test liquid.

Validated measurement approach

Independent benchmarking and publication-based validation references.

Peer reviewed method

The Dropometer drop shape method is validated against a KRUSS DSA100E in two peer reviewed papers, one in Review of Scientific Instruments and one in Colloids and Surfaces A. Published contact angle accuracy is ±0.35°.

Read the validation papers

Customer evidence

We have no published client paper or case study on critical surface tension to ASTM D7541 yet. The coating defects use case shows how contact angle checks help trace craters, fisheyes and crawling.

Read the use case

Set critical surface tension limits from your own parts

ASTM D7541 · critical surface tension · paint and coatings QC

The public ASTM summary gives no numeric pass or fail value. It describes go or no go use: if a certain liquid wets the surface, the surface is ready to paint; if it pulls back or crawls, it is not. A paint can also serve as the test liquid on a substrate, primer or basecoat (source: ASTM D7541-11(2022) summary).

Published reference values for the critical surface tension of substrates help you sanity check a result. One polymer table lists polyethylene at 31.6 mN/m and PTFE at 19.4 mN/m (source: Accu Dyne Test polymer table). Treat these as a guide, not a limit.

Set your accept limit from your own correlation study. Measure parts that painted well and parts that cratered or failed adhesion, with the same liquid set, then pick the limit from that data. Repeat the study when you change resin, mould release, cleaning step or liquid set. For more reference values, see the surface free energy dataset.

Example output

Example data for illustration only. These are not measured results. Your own parts, liquids and limits decide the numbers.

Example: moulded plastic part, five test liquids, three surface conditions

Test liquid Surface tension (mN/m) Clean part (°) Part with mould release (°) After solvent wipe (°)
Ethylene glycol47.757.271.259.9
Diiodomethane50.860.778.365.6
Formamide58.276.886.777.2
Glycerol63.484.296.885.8
Water72.8101.8109.8103.4
Critical surface tension (mN/m)At cos θ = 133.1: accept21.0: hold, clean and retest30.8: accept

How to read this table

Each angle is the mean of five drops. Liquid surface tensions were checked by pendant drop on the day. The last row is the critical surface tension from a straight line fit of cos θ against liquid surface tension, extended to cos θ = 1: R² is 0.996 for the clean part, 0.994 with mould release and 0.997 after the wipe. The example accept limit of 30 mN/m comes from a paint adhesion trial.

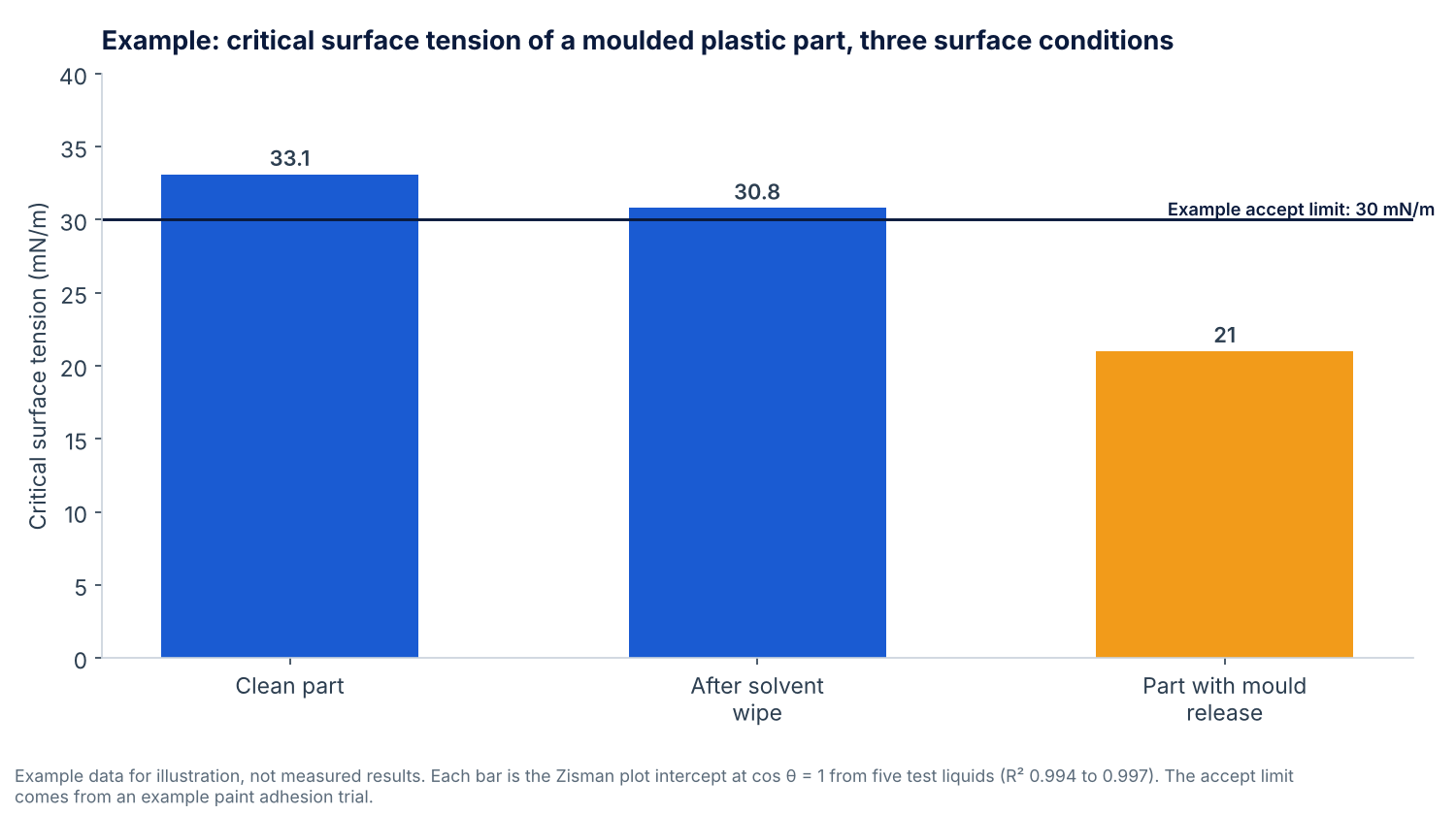

Example output chart

The critical surface tension from the example table for each surface condition, against an example accept limit of 30 mN/m.

Bar chart of example critical surface tensions for a clean moulded plastic part, the part after a solvent wipe and the part with mould release, against a 30 mN/m accept limit

Example data, not measured results.

Business impact

What changes when the wetting check is a measured value

Metric Before Dropometer With Dropometer Results
How the check is made Swab or pen: does the liquid wet or pull back, judged by eye Contact angle of each liquid, read from the drop image No published benchmark
Result format Pass or fail per liquid A critical surface tension in mN/m, with the fit R² ASTM D7541 scope: Zisman plots give more exact values
Liquid values Handbook surface tension Measured by pendant drop, up to 75 mN/m, ±0.03 mN/m Dropometer product specification
Where it runs Shared lab goniometer At the paint line or in the lab, on battery for up to 8 h Dropometer product specification

See the measurement on your own parts

Bring two parts: one that painted well and one that cratered or peeled. We will measure both live with a set of test liquids.

Book a 15 minute demo Request a quote
ROI estimate

Estimate the cost of the paint defects this test can catch

Enter your own numbers. The defaults are examples, not Droplet Lab results.

Quality cost snapshot

Estimate what wetting related failures cost you.

Example only. Use what you see in a trial on your own samples.
Your own figure.
Your own estimate.

Result

~0
Estimated annual cost today
~0
Estimated annual cost avoided
~0
Payback period

Annual exposure combines audit/CAPA cost, customer rejections, and recall probability; avoided exposure applies the risk reduction percentage.

Method settings

Lock these before you compare results between shifts or sites

Parameter Recommended Setting Technical Rationale
Test liquids A series of known surface tension, as the standard specifies The same set every time. A different set can move the result.
Liquid surface tension Measured by pendant drop on the day Purity and temperature shift it. The Dropometer reads up to 75 mN/m.
Drop volume As the standard specifies, fixed for every drop A changing volume adds spread that is not about the surface.
Reading time As the standard specifies, fixed for every liquid Solvents evaporate, so the angle changes with time.
Angles below 10° Record as wetting; leave out of the line fit Below the Dropometer contact angle range of 10° to 175°.
Fit model Young-Laplace or polynomial, the same for every liquid Both models are in the Dropometer software. Do not mix them within one plot.
Zisman fit Straight line of cos θ against surface tension, in a spreadsheet The Dropometer software does not list a Zisman fit. Report the slope and R².
Environment Record room temperature The Dropometer runs at 10 to 45 °C and has no temperature control.

Is ASTM D7541 the right test?

Pick the method by the question you need answered

Start: What do you need to know about the surface before you coat it?

One wetting number for paint on this surface

Signals:

You want to predict crawling or cratering, or check a flat surface before painting or after cleaning.

Rule-out:

Use ASTM D7541, this page. The Dropometer is partially compliant: it runs the drop and Zisman plot route.

Quick check on curved or porous parts

Signals:

Your parts are curved, irregular or porous, or you test in the field.

Rule-out:

Use the D7541 swab or marking pen test, which ASTM suits to these surfaces. The Dropometer does not run it.

Polar and dispersive surface free energy

Signals:

Your surface is polar, such as a treated polymer, acrylate or metal, or you need to know why a coating fails.

Rule-out:

Use ISO 19403-2. The Dropometer software runs Fowkes and van Oss Chaudhury Good; OWRK is not built in, so run it in the free calculator.

Water contact angle as a readiness check

Signals:

You need a fast check with one liquid on prepared or cleaned surfaces.

Rule-out:

Use ASTM D8597 or ASTM D7334.

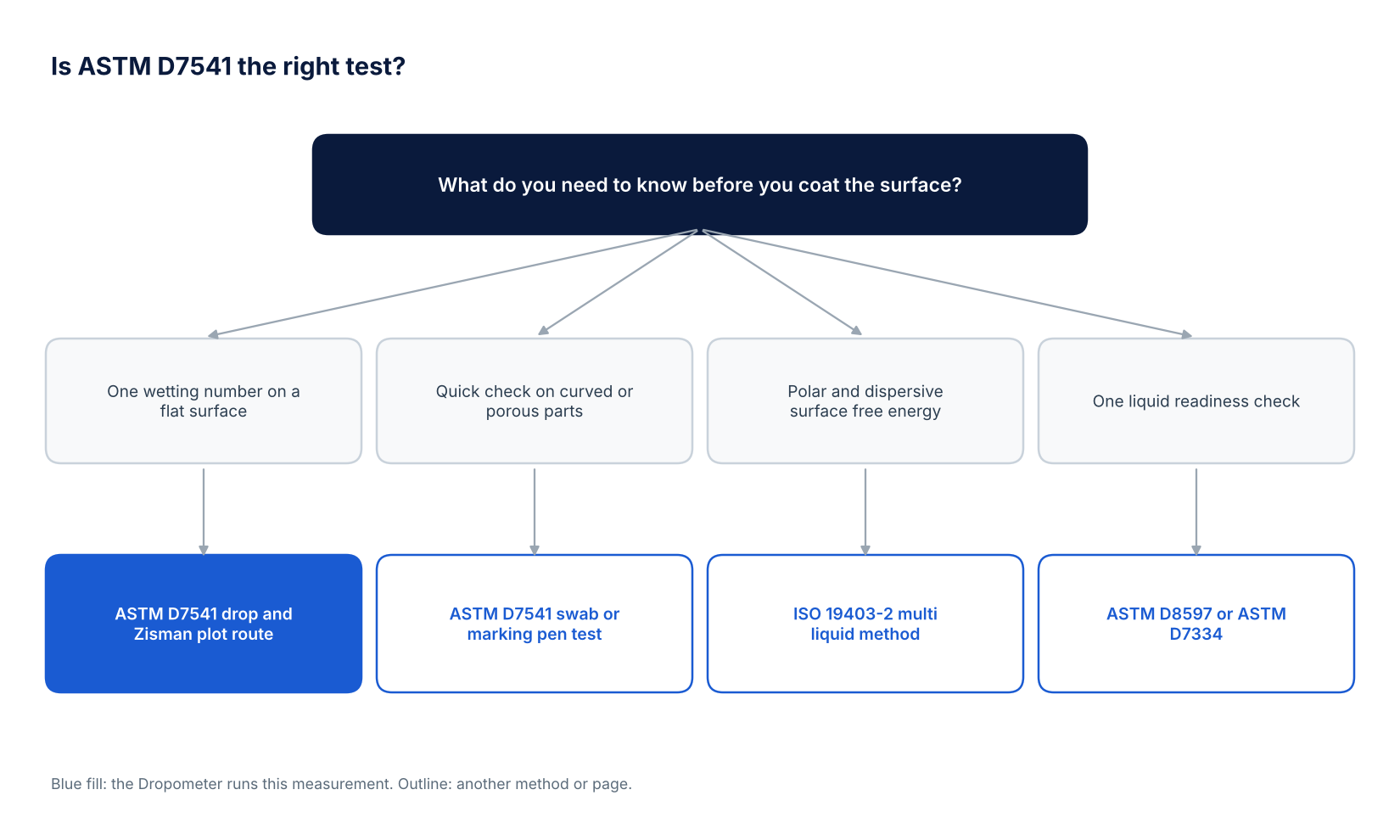

Decision tree at a glance

Start from the question you need answered. The blue box is the part of this work the Dropometer runs.

Decision tree for choosing between the ASTM D7541 Zisman plot route on the Dropometer, the D7541 swab or marking pen test, ISO 19403-2 surface free energy and a single liquid contact angle check

Is ASTM D7541 the right test?

Interpreting results

What the critical surface tension tells you, and what it does not

Higher value, easier to paint: ASTM links surfaces with low critical surface tension to crawling, cratering, picture framing and poor adhesion. High values mean coatings applied to the surface wet it well.
Compare before and after cleaning: Low or uneven values can point to contamination. A rise after solvent wiping or washing shows the cleaning worked.
Check the fit, not only the number: A low R² or a curved plot means the liquids interact with the surface in different ways. The result then depends on which liquids you used.
Not the same as surface free energy: It is a one parameter estimate. KRUSS notes it suits non polar surfaces and falls short on polar ones such as treated polymers and metals.
Expert perspective

Why critical surface tension predicts how paint wets

Pick the measurement to match the question: the same surface can read one way as a sessile drop and another on a tilted plate, and both can be the right answer.

Dr. Alidad Amirfazli

Department of Mechanical Engineering, York University, Co-founder and Scientific Advisor, Droplet Lab

Common pitfalls and limits

Honest limits of the method and of the Dropometer

Angles below 10° are outside the Dropometer range. Record those liquids as wetting and fit the line from the rest.
Organic solvents evaporate during the reading. Keep the reading time fixed and keep the drop out of drafts.
Some solvents swell or dissolve coatings and plastics. The angle then reflects the damage, not the surface.
The Dropometer has no temperature control. Liquid surface tension changes with temperature, so record room temperature.
The Dropometer software does not list a Zisman fit. Plot the line in a spreadsheet and keep the same liquid set between studies.
ASTM notes the drop test works poorly on curved, irregular or porous parts. Use the swab or marking pen route there.
FAQ

Frequently asked questions

What does ASTM D7541 measure?

It is a practice for estimating values of the critical surface tension of surfaces: the highest liquid surface tension that still wets them fully. You either watch a series of test liquids wet or pull back, or measure their contact angles and build a Zisman plot. ASTM says the Zisman plot gives a more exact value. ASTM classes D7541 as a standard practice, not a test method.

Can the Dropometer run ASTM D7541?

In part. The Dropometer measures the contact angle of each test liquid with ±0.35° accuracy and checks each liquid by pendant drop, up to 75 mN/m. You fit the Zisman line in a spreadsheet. The swab, marking pen and draw down tests are manual tests the Dropometer does not run.

How do you build a Zisman plot for ASTM D7541?

Plot cos θ for each test liquid versus surface tension and fit a straight line. Extend the line to cos θ = 1, which is full wetting. The surface tension at that point is the critical surface tension. Report the slope, R² and the liquids used.

Which test liquids does ASTM D7541 use?

A series of liquids of known surface tension, usually organic solvents, as the standard specifies. ASTM also allows a paint as the test liquid on a substrate, primer or basecoat. Keep the same set for every study, and check each liquid by pendant drop.

Is critical surface tension the same as surface free energy?

No. It is a one parameter estimate that works best on non polar surfaces. For polar and dispersive parts, use Fowkes or van Oss Chaudhury Good in the Dropometer software. OWRK and Wu are not built in: measure the angles with the Dropometer and run OWRK in the free Contact Angle to Surface Energy Calculator. See ISO 19403-2.

What critical surface tension is good enough to paint?

The public ASTM D7541 summary gives no numeric limit. It links high values with easy wetting and low values with crawling, cratering and poor adhesion. Set your accept limit from parts that painted well and parts that failed, measured with the same liquid set.
