Executive summary

What this specification measures, who uses it and how the Dropometer fits

IEC TS 62073 gives guidance on measuring how water repellent an insulator surface is, using contact angle (Method A), test liquids (Method B) or a water spray rated by eye (Method C). Utilities, insulator makers and test labs use it to track silicone rubber ageing and recovery. The Dropometer is fully compliant with Method A, static and dynamic.

Method A gives you numbers you can trend: the static angle, plus advancing and receding angles that show how drops pin or roll. Methods B and C stay useful for quick ratings, and need no instrument.

The Dropometer contact angle kit weighs 1 kg and runs on battery, so you can measure in a test bay or at a substation. For the full workflow, see high voltage insulator hydrophobicity. Background reading: our electrical and electronics guide, the contact angle measurement guide and the lotus effect.

Further reading: how to keep results comparable in reproducible contact angle measurement, what to look for in a goniometer for industrial QA, a classroom version in superhydrophobic surfaces on glass, and our open reference measurements.

How the Dropometer fits the measurement on insulator surfaces

Method A, step by step, in our own words

From insulator specimen to recorded angles

These steps outline Method A. They do not replace the specification. Buy the current edition, including Corrigendum 1, and follow its specimen and drop rules.

±0.35°

Contact angle accuracy

From the Dropometer product specification. Display resolution is 0.01°.

About 2 min

Setup

Base plate, phone holder, LED and syringe. No PC needed.

8 h

Battery time

5 V battery only operation, so the unit can go to a test bay or substation.

1

Choose and record the specimen

Use a flat area of the shed or housing, or a coupon from the same compound. Record the service or ageing history. Do not clean the surface unless your test plan says so.

2

Set up the Dropometer

Place the base plate on a level surface, mount the phone and LED, and fill the Hamilton syringe with deionised water. Secure the specimen flat on the sessile stage.

3

Measure the static angle

Place a drop of the volume the specification sets. Automatic edge and baseline detection reads the angle from the profile, so two operators get the same reading from the same image.

4

Measure the dynamic angles

Add water through the needle until the contact line moves to read the advancing angle. Withdraw water until it retreats to read the receding angle. If your plan uses the captive bubble option, use the optional cuvette.

5

Repeat across the surface

Measure several spots on each specimen. Pollution, discharge exposure and ageing are rarely even across a shed.

6

Record and compare

Record the mean, spread and hysteresis for each specimen, with the date and rest time. Compare against new material and your own limits.

7

Watch the full measurement

This video shows a complete Dropometer contact angle measurement, from setup to result. It covers the static steps above in one run.

Dropometer contact angle measurement, start to finish.

Validated measurement approach

Independent benchmarking and publication-based validation references.

Peer reviewed method

The Dropometer drop shape method is validated against a KRUSS DSA100E in two peer reviewed papers, one in Review of Scientific Instruments and one in Colloids and Surfaces A. Published contact angle accuracy is ±0.35°.

Read the validation papers

Customer evidence

We have no published client paper or case study on insulators yet. Customers have published Dropometer contact angle data on other water repellent surfaces.

Browse customer citations

Set limits from your own insulator material

IEC TS 62073 · Method A · ageing and recovery

IEC TS 62073 tells you how to measure. It does not set a pass mark. Your acceptance limits come from your utility or product specification.

Start with a baseline: measure new material from the same compound on the same settings. Then measure aged or field samples against that baseline, and repeat after a set recovery time.

The specification notes that a result reflects the surface at the time of measurement. So record the date, the service or ageing history, and how long the sample rested before you measured.

Example output

Example data for illustration only. These are not measured results. Your compound, ageing method and limits decide the numbers.

Example: silicone rubber shed material, new, aged and recovered

Specimen Static (°) Advancing (°) Receding (°) Hysteresis (°) Reading
New material106.4112.189.722.4Baseline
After discharge ageing74.888.338.649.7Loss of hydrophobicity
Aged, after 48 h rest98.2107.576.930.6Recovering

How to read this table

Each row is the mean of five drops. Hysteresis is advancing minus receding. A falling receding angle and rising hysteresis show drops starting to pin, before the static angle drops far.

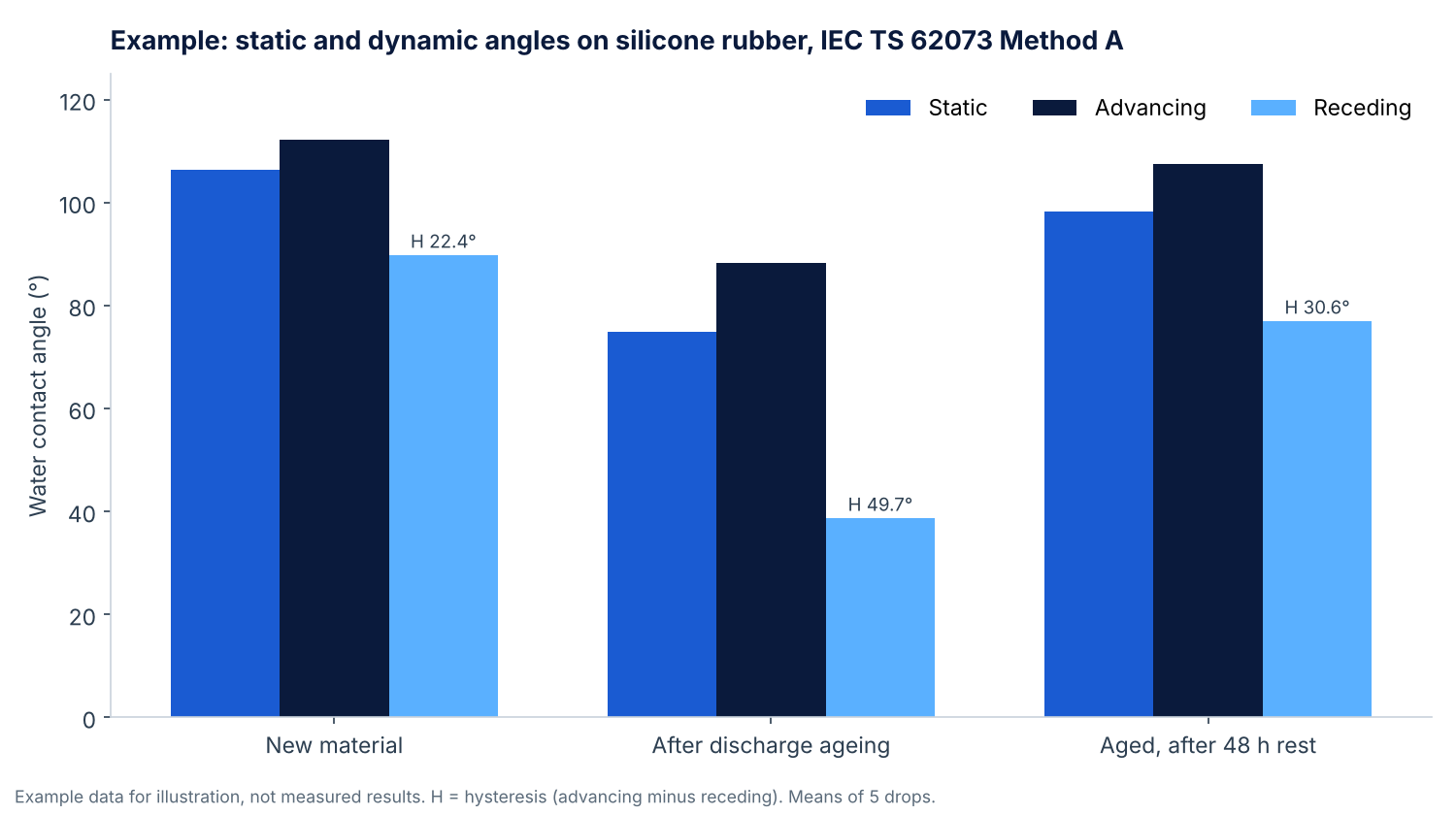

Example output chart

The same example data as the table, plotted. Hysteresis is shown above each receding bar.

Bar chart of example static, advancing and receding water contact angles on new, aged and recovered silicone rubber

Example data, not measured results. H is hysteresis, advancing minus receding.

Business impact

What changes when hydrophobicity is a measured angle

Metric Before Dropometer With Dropometer Results
How hydrophobicity is rated Spray method classes judged by eye (Method C) Measured contact angles (Method A) Both methods are in IEC TS 62073
Result format A class from reference pictures Static, advancing and receding angles, ±0.35° accuracy Dropometer product specification
Where it runs Lab goniometer, sample shipped in Battery unit in a test bay or at site, up to 8 h Dropometer product specification
Record Photo and class Drop image and angles saved per measurement No published benchmark

See Method A on your own material

Send or bring a new sample and an aged one. We will measure both live, static and dynamic.

Book a 15 minute demo Request a quote
ROI estimate

Estimate the cost of the insulator failures this test can catch

Enter your own numbers. The defaults are examples, not Droplet Lab results.

Quality cost snapshot

Estimate what wetting related failures cost you.

Example only. Use what you see in a trial on your own samples.
Your own figure.
Your own estimate.

Result

~0
Estimated annual cost today
~0
Estimated annual cost avoided
~0
Payback period

Annual exposure combines audit/CAPA cost, customer rejections, and recall probability; avoided exposure applies the risk reduction percentage.

Measurement settings for Method A

Lock these before you compare samples or sites

Parameter Recommended Setting Technical Rationale
Test liquid Deionised water Method A is a water contact angle method.
Static angle Sessile drop, read at a fixed time Gives the headline hydrophobicity value.
Dynamic angles Add and withdraw water through the needle, or captive bubble with the optional cuvette Method A covers advancing and receding angles. Both routes are possible on the Dropometer.
Drop volume As the specification sets, fixed for every drop A changing volume adds spread that is not about the surface.
Specimen Flat area or coupon from the same compound Ribbed or curved sheds need a flat section or a custom holder, available on request.
Replicates Several spots per specimen Ageing and pollution are rarely even across a surface.
Fit model Young-Laplace or polynomial, the same for every run Both models are in the Dropometer software. Do not mix them within one study.
Environment Record temperature and humidity The Dropometer runs at 10 to 45 °C without condensation and has no temperature control.

Which IEC TS 62073 method should you use?

Pick the method by the answer you need

Start: How will you rate the insulator surface?

Measured angles to trend or compare materials

Signals:

You compare compounds, ageing steps or field samples against a baseline.

Rule-out:

Use Method A, contact angle. The Dropometer is fully compliant with static and dynamic angles.

A quick rating without instruments

Signals:

You inspect many insulators and need a fast class for each.

Rule-out:

Use Method C, the spray method. Contact angle can back up borderline classes.

A wetting tension estimate

Signals:

You want to know which test liquid still wets the surface.

Rule-out:

Use Method B with its test liquids. No instrument is needed.

Choosing polymeric materials for outdoor use

Signals:

Your question is material selection, not one measurement.

Rule-out:

See IEC TR 62039.

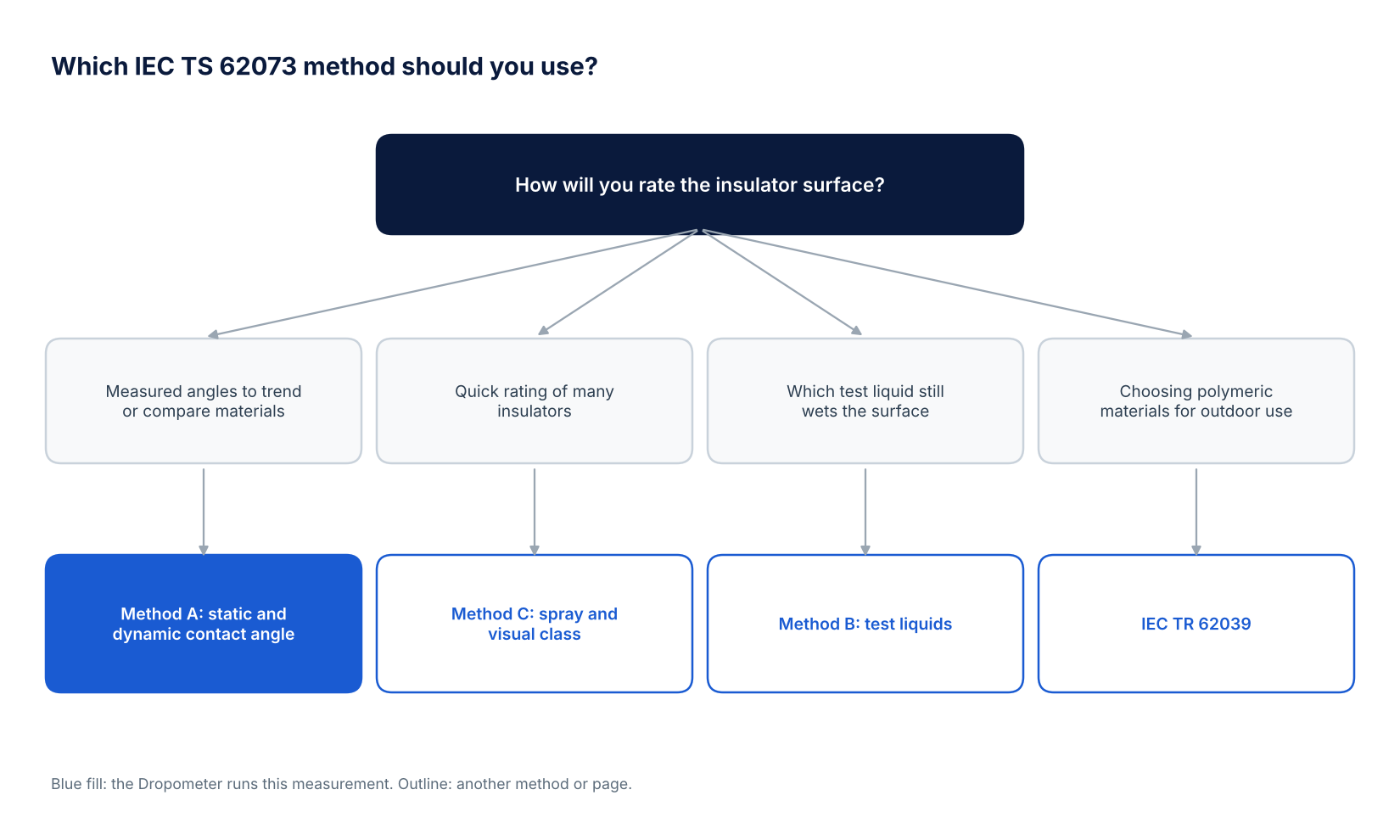

Decision tree at a glance
