Flame Treatment Verification for Reliable Paint, Print and Adhesive Bonding
Confirm flame treatment actually activated the part, in every zone, and has not faded before you paint, print or bond, so a weak surface from a burner drift, a missed edge or a long hold gets caught on the line, not after a failed part.
Who this is for: Process engineers, paint and assembly engineers, QA/QC managers and supplier quality engineers working with flame treated PP, PE and TPO parts such as bumpers, fascias, bottles and closures.
Positioning: Dropometer does not replace peel, tape or cross hatch adhesion testing. It is an upstream check that confirms the flame treatment took, zone by zone, before painting, printing or bonding.
The Cost Of Getting It Wrong
10×
higher hidden cost than visible scrap cost
Lean Six Sigma research consensus
$1 → $10
spent upstream typically saves $10 in internal rework and up to $100 in warranty and recall costs
Cost of Quality 1-10-100 rule
Sources: American Society for Quality via Fabrico COPQ Guide 2026, Lean Six Sigma research consensus, Cost of Quality 1-10-100 rule. Figures are third party industry benchmarks, not Droplet Lab claims.
What this workflow does and what it does not
Quick technical reference for engineers and QA managers evaluating fit before reading further.
Evidence Box (QC-Ready)
Paint peel, ink rub off and bond failures on polypropylene, polyethylene and TPO parts, traced to under treated, unevenly treated or aged flame treated surfaces
Pre-paint and pre-bond check that confirms the flame treatment took, zone by zone
Water contact angle per zone as the activation indicator
Surface energy (total, dispersive, polar) with a second liquid
Spread across zones
Time since treatment
Set PASS, MONITOR and FAIL bands against your own peel, tape or cross hatch results, per resin, part and paint or adhesive system
Deionised water probe liquid
Fixed drop volume and read time
5 or more drops per zone
Record time since treatment, temperature and humidity
Contact angle and surface energy confirm surface readiness, not paint adhesion, bond strength or cure
What are you trying to solve?
The Dropometer serves four roles across a flame treatment verification program. Each has a different primary risk.
Process Engineer (Burner Settings)
A number that shows whether gas to air ratio, flame distance, line speed and passes still give the qualified treatment
Paint or Assembly Engineer (Hold Time)
How long treated parts stay ready to paint or bond before the treatment fades
QA / QC Manager
A numeric release gate before painting or bonding, instead of a visual or time based judgement
Supplier Quality Engineer (Incoming Parts)
A check that parts treated at a supplier arrived treated, and stayed treated
Is this the right screen for your process?
This is not a universal solution. Check the conditions below before investing further time.
Good fit if
Less relevant if
Flame Treatment Doesn't Fail at the Burner. It Fails at the Edges and on the Clock.
A part that went through the burner can still fail if the flame missed a zone or the treatment faded before painting or bonding.

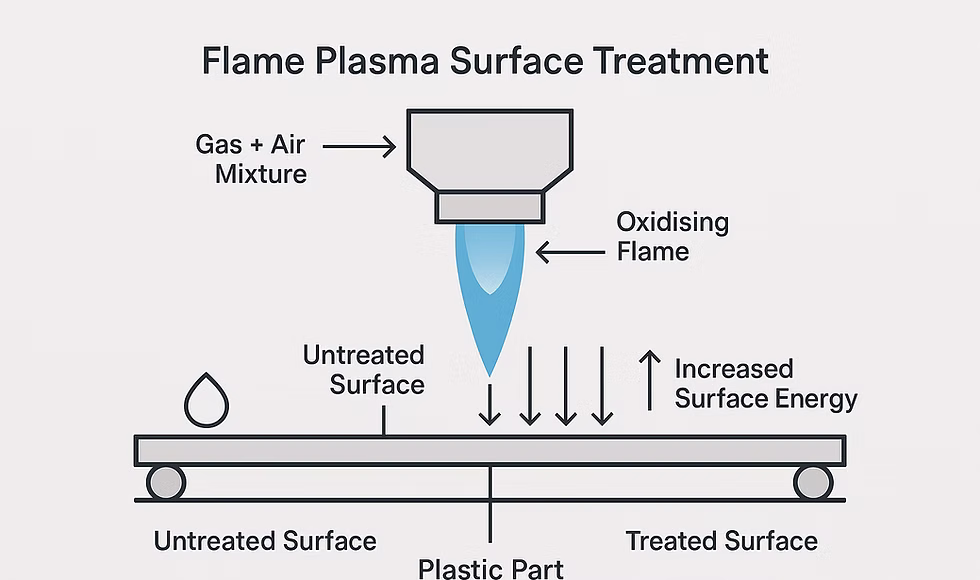

Flame treatment oxidises the top few nanometres of a polyolefin and adds polar groups that let paint, ink and adhesive wet the surface. The part looks the same before and after. A burner that drifts, a recess the flame does not reach, or a long hold before painting can each leave a surface that looks treated but is not ready. On polypropylene film, one study found flame treated surfaces aged less than corona treated ones, so decay is often slower than with corona, but it still varies by resin and storage (Strobel et al., 2003).
This workflow measures contact angle right after treatment and again just before painting or bonding, zone by zone. A missed edge shows up as a burner path problem and a faded surface shows up as a hold time problem, instead of both being blamed on the paint or adhesive. The limit: it verifies surface activation, not paint adhesion, bond strength or cure, which still need their own acceptance tests.
Expert Perspective
What a liquid responds to is only the outermost few ångström of a surface, the skin, not the bulk. Change that skin and you change the wetting, even if the material underneath is identical.
What Does a Flame Treatment Verification Gap Actually Look Like?
Parts treated on the usual settings still fail at paint, print or bond, and the failures do not track any single process change. Treated and untreated parts look identical, so there is no quick way to tell whether the burner, the hold time, the part shape or the resin is responsible.
Root Causes
Why:
- Too little energy leaves the surface under activated; too much can form a weak, oxidised top layer.
How to detect:
- Contact angle higher than your baseline right after treatment, or a low angle with adhesion still failing.
Corrective action:
- Reset burner settings against the qualified recipe, then confirm with an adhesion test.
Why:
- Treated polyolefin surfaces drift back toward untreated over hours to weeks, depending on resin, additives and storage.
How to detect:
- Contact angle rises between treatment and painting or bonding.
Corrective action:
- Set a maximum hold time from your own decay curve, and re-treat parts that exceed it.
Why:
- The flame sits at a different distance from each zone of a shaped part.
How to detect:
- High spread between zones on one part.
Corrective action:
- Adjust the burner path, fixture or robot program; map the zones that matter.
Why:
- Talc, slip agents, antistatic additives and mould release can move to the surface and change wetting.
How to detect:
- Patchy high angles in the same spots, or a new baseline with each resin lot.
Corrective action:
- Set a baseline per resin grade, clean or change handling, and check the resin specification with your supplier.
Why:
- Paint cure, primer, adhesive chemistry and joint design also cause failures.
How to detect:
- Activation within your baseline band, but adhesion still fails.
Corrective action:
- Move the investigation to the coating or adhesive system.
Not sure which root cause applies to your process?
A surface science specialist can review your failure history and help you decide whether a surface screen would add a useful upstream gate.
Building a defensible pre-paint and pre-bond inspection record
A numeric surface reading gives a record that a visual check or a schedule cannot. Log each reading in your own QC system.
Inspection trail
Contact angle per zone, replicate spread, time since treatment, operator and conditions for every checked part.
CAPA evidence
Readings right after treatment and just before painting separate a burner problem from a hold time problem.
NCR documentation
Numeric data lets you assign a failure to dose, decay, coverage or resin, or rule surface treatment out.
Supplier qualification
A contact angle or surface energy band gives a numeric acceptance criterion for parts treated by a supplier.
Process control records
Trend readings by batch, shift and burner to show the process stays in its window.
Pre-paint and pre-bond release record
A reading taken just before painting or bonding is the basis for releasing or holding the batch.
What to Measure
Contact angle
Why it matters: The fastest direct indicator that flame treatment activated the surface.
How to interpret: A lower water contact angle means more activation; set PASS, MONITOR and FAIL bands from your own adhesion data.
When it is not enough: A low angle does not prove adhesion, for example on an over treated surface.
Surface energy trend
Why it matters: Compares directly with a paint or adhesive supplier's minimum surface energy.
How to interpret: Total and polar components rise with treatment and fall as it fades.
When it is not enough: Needs a second probe liquid, and a single value hides zone to zone differences.
Time since treatment / decay tracking
Why it matters: Treatment fades, and hold times grow when parts wait for paint lines or move between plants.
How to interpret: Build a decay curve per resin and storage condition, and set your maximum hold time from it.
When it is not enough: Decay rates differ by resin, additives and storage, so published curves do not transfer.
Spot variability, zone mapping
Why it matters: Finds edges, recesses and far sides that the flame missed.
How to interpret: High spread between zones on one part means uneven treatment.
When it is not enough: Shows where treatment is weak, not why.
Validated Measurement Approach
Independent benchmarking and publication based validation references.
Benchmark Validation
Dropometer contact angle and pendant drop surface tension methods have been benchmarked against KRÜSS DSA100E reference measurements, with published contact angle accuracy of 0.35°.
See peer-reviewed validationHow Dropometer Fits Your Workflow
Flame treatment is common on automotive bumpers and fascias, packaging bottles and closures, and moulded plastic housings. At about 1 kg, the Dropometer goes to the part on the line.
Establish a treatment baseline
Measure parts right after a known good treatment, in each zone that matters.
Characterize your decay window
Measure the same parts at several hold times to set your maximum time to paint or bond.
Set a pre-paint or pre-bond release gate
Check sample parts before painting or bonding: PASS inside the baseline band, MONITOR at the edge, FAIL outside it and re-treat.
Troubleshoot a paint or bond failure
Check whether the failure matches burner drift, a missed zone, ageing, the resin, or a cause outside surface treatment.
We completed our gage R&R study on the unit and it performed very well.
Brandon Barbee
Corporate Quality Engineer, Zeus Industries
Download the Pre-Paint and Pre-Bond Flame Treatment Verification SOP Template
Editable SOP template for your team to adapt to your resin, burner and paint or adhesive system, covering the measurement protocol, decay window characterisation, gate setting and QC log format.
Sample Pre-Paint Screening: Treatment Activation and Decay Tracking
Illustrative values, not measured data. Set every band from your own adhesion test results.
A flame treatment release record lists the water contact angle for each zone, the time since treatment and a release decision for each part. The values in the table are illustrative; set your own PASS, MONITOR and FAIL bands from your adhesion tests.
Sample Pre-Paint Screening: Treatment Activation and Decay Tracking
| Sample | Contact Angle (°) | Time Since Treatment | Release Decision |
|---|---|---|---|
| PP bumper, centre face | 64 | 0 h | PASS, baseline |
| PP bumper, lower edge | 79 | 0 h | MONITOR, check burner path |
| PP bumper, centre face | 70 | 24 h | PASS if inside your decay window |
| PP bumper, centre face | 88 | 7 days | FAIL, re-treat before painting |
The centre face reading right after treatment sets the PASS baseline. The lower edge of the same part reads higher, so the flame is not reaching that zone evenly; check the burner path before the batch moves on. After 24 hours the centre face has risen a little and still passes if your own decay curve allows that hold. After 7 days the surface has faded, so the part goes back through the burner before painting. This record is what QA uses to release or hold the batch.
Flame treatment verification troubleshooting guide
Start condition: paint peel, ink rub off or bond failures are showing up on flame treated parts. Use the signal pattern to find the most likely cause.
Contact angle higher than baseline right after treatment
Likely cause: Low flame dose from gas to air ratio, distance, line speed or a worn burner. Action: Check burner settings against the qualified recipe and re-measure.
Contact angle rises between treatment and painting or bonding
Likely cause: Treatment decay during the hold. Action: Shorten the hold, or re-treat parts that exceed the maximum time from your decay curve.
High spread between zones on one part
Likely cause: Uneven coverage on edges, recesses or the far side of a curved part. Action: Adjust the burner path or fixture and map zones again.
Persistently high angle across a new resin lot
Likely cause: Additives or mould release at the surface, or a resin grade change. Action: Set a new baseline for that grade and check the resin specification with your supplier.
Activation within baseline but paint or bond still fails
Likely cause: Over treatment, or a cause outside surface treatment such as cure, primer or adhesive chemistry. Action: Confirm with an adhesion test and move the investigation to the coating or adhesive system.
Common questions before adoption
No. It is an upstream check. Confirm final adhesion with your usual peel, tape or cross hatch test.
Yes. Treatment can fade during the hold, miss a zone, or be undone by additives at the surface. Paint cure and adhesive chemistry can also cause failures.
There is no universal number. Flame treated PP film has been reported to age less than corona treated film, but you still need your own decay curve for each resin and storage condition.
The cause is likely outside surface activation: over treatment, cure, primer, adhesive chemistry or joint design. The reading helps you rule surface treatment out quickly.
Yes, on the flattest area of each zone. The Dropometer weighs about 1 kg, so it can go to the part.
Yes. Measure each zone that matters and compare the spread. A good average can hide a missed edge.
It gives a number and a drop image where dyne pens give a pass or fail. Many lines keep dyne pens for quick spot checks and use contact angle to set and check the gate.
What Changes When You Verify Activation Before Painting or Bonding, Not After a Failed Part
Before and with Dropometer; operational outcomes
| Metric | Before Dropometer | With Dropometer | Indicative Benchmark |
|---|---|---|---|
| Failure discovery point | Adhesion test, customer return or field failure after painting or bonding | Contact angle check just before painting or bonding | COPQ from late discovered defects is typically 15–20% of revenue |
| Hold time management | Fixed interval assumed safe, whatever the resin or storage | Measured decay curve sets a resin specific maximum hold | Separates a burner problem from a scheduling problem |
| Failure diagnosis | Trial and error across burner, resin, paint and adhesive | Rule out logic isolates surface activation before other variables | Structured diagnosis instead of guess and check |
| Batch to batch consistency | Unmeasured drift across shifts, burners and resin lots | Tracked per batch and zone against a verified baseline | Zone and replicate spread shows drift before parts are painted |
| Inspection records | "It went through the burner" | Numeric readings with time since treatment, logged in your QC system | Usable for NCR, CAPA, incoming inspection and supplier qualification |
Instant ROI Snapshot
Flame Treatment Verification ROI Snapshot
Estimate avoided repainting, rebonding and rework cost from under treated or faded surfaces.
Result
Monthly savings = preventable rework cost + preventable scrap cost + other monthly savings.
What Activation Verification Cannot Tell You About Paint or Bond Adhesion
Knowing the limits of any measurement tool is part of using it responsibly.
Use this page to improve flame treatment verification and hold time control, not to replace adhesion testing. The Dropometer is one layer in a quality system, not a substitute for one.
